Digital Multimeter

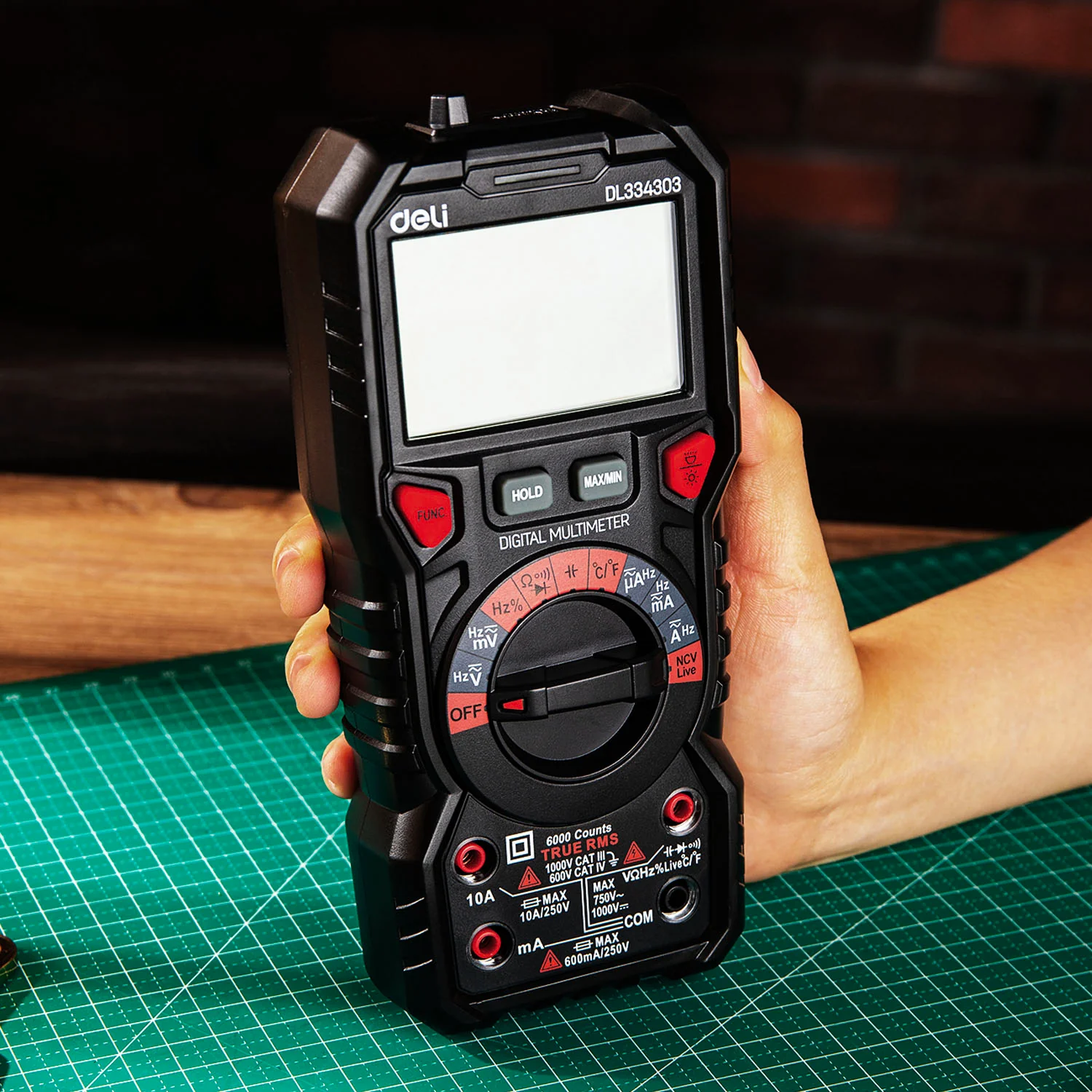

Deli Tools – Digital Multimeter

Brand: Deli Tools

Model: DL334303

Color: Black/Red

Tool Category: Professional

Display: 3 5/6 digits LCD, max. 5999 counts

Altitude: <2000m

Pollution Level: 2

Max. Input DC Voltage: 1000V

Max. Input AC Voltage: 750V

Max. Input AC/DC Current: 10A

Security Class: CAT IV 600V. CAT III 1000V

Sampling Rate: About 3 times/sec

Battery: 1.5V AA battery

Main Functions: 9

• DC/AC Voltage measurement
• DC/AC Voltage mV measurement
• Frequency/Duty measurement
• DC/AC Current measurement
• Resistance measurement
• Continuity measurement
• Diode measurement
• Capacitance measurement
• Temperature measurement
• NVC / Live test

Temperature coefficient: 0.1x accuracy/°C (<18°C or >28°C)

Working Environment Temperature / Relative Humidity: 0°C to 40°C (<80% RH, <10°C non-condensing)

Storage Environment Temperature / Relative Humidity: -10°C to 60°C (<70% RH, remove the battery)

Material: Plastic

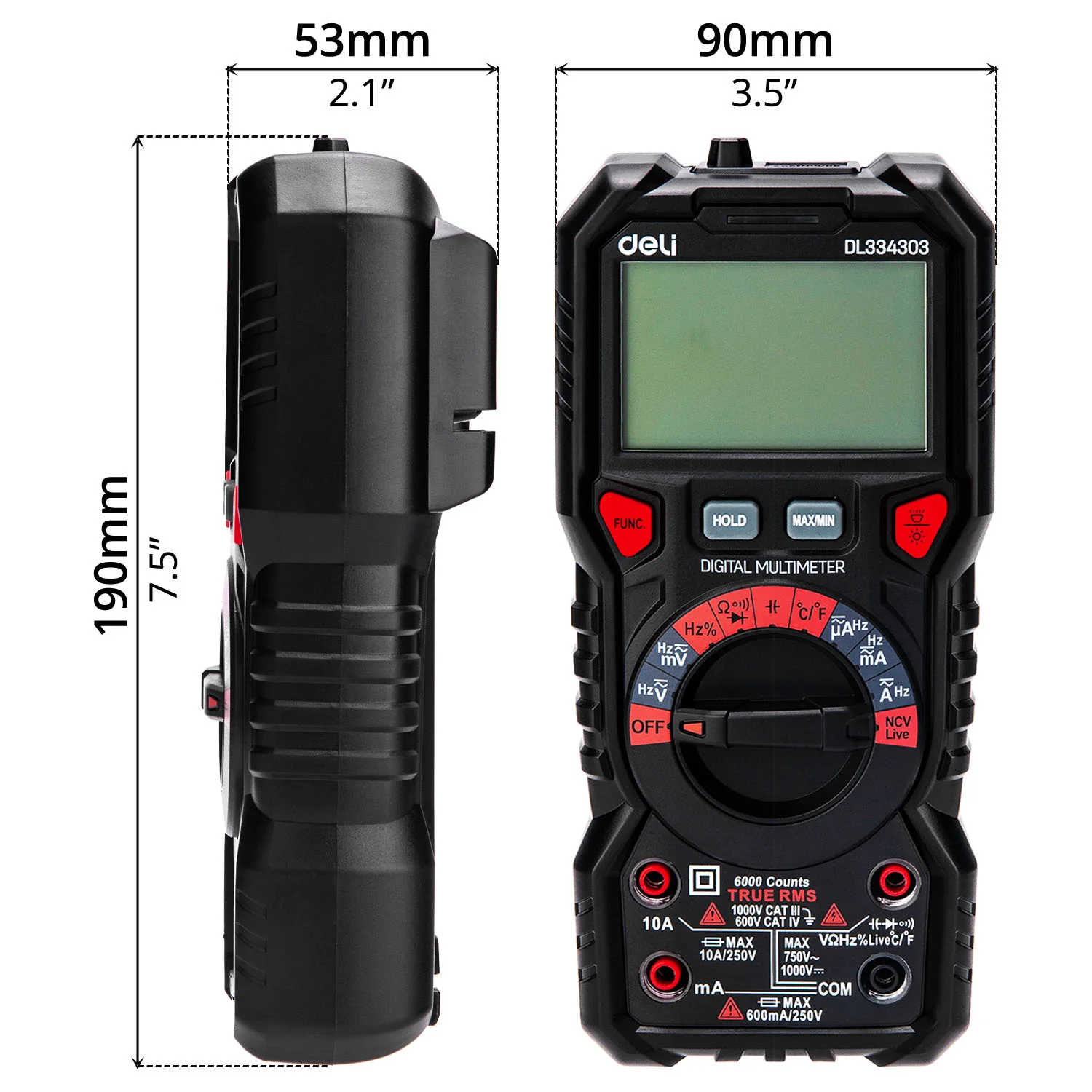

Product Dimension (W x D x H): 90 x 53 x 190mm (3.5” x 2.1” x 7.5”)

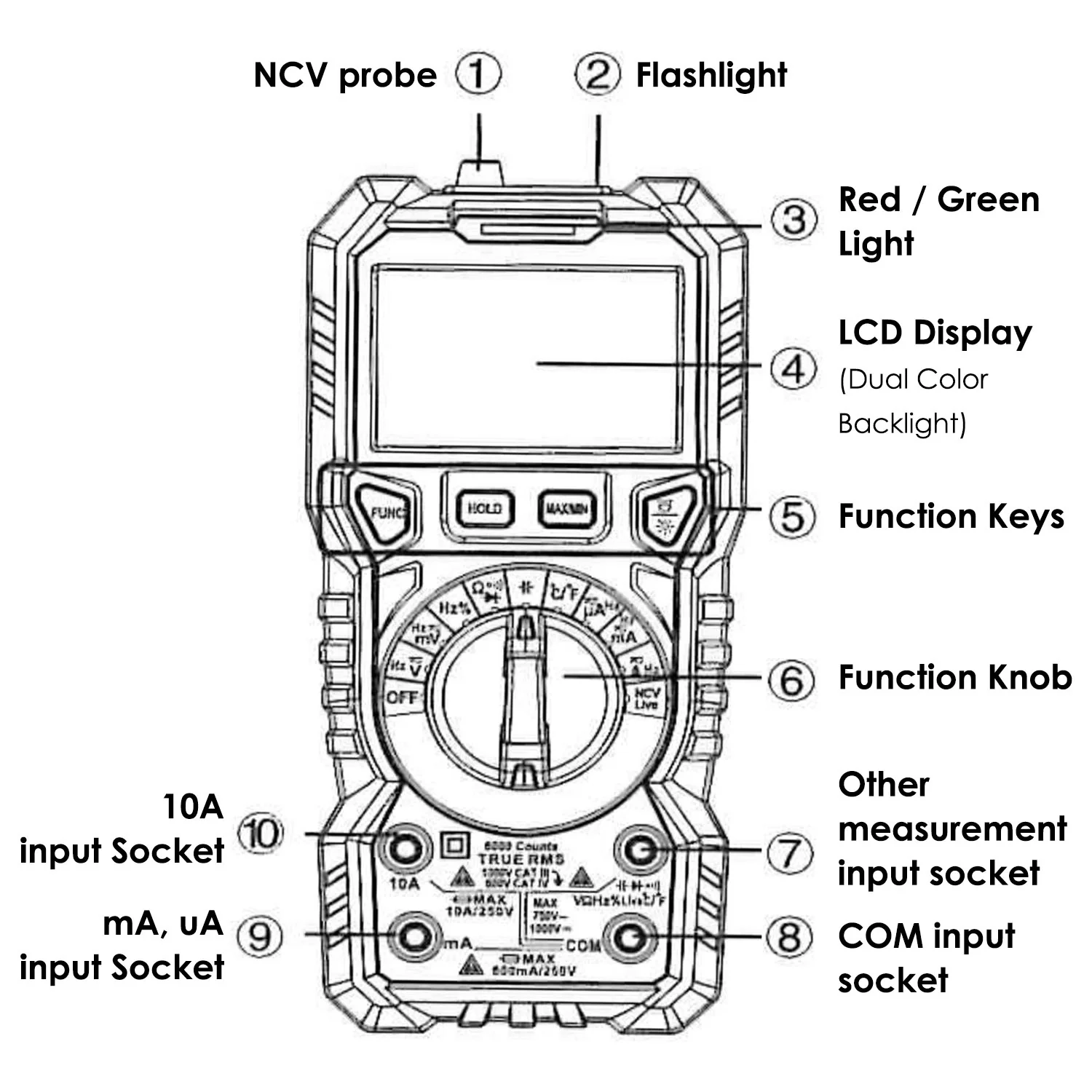

Features:

• Auto-power off.

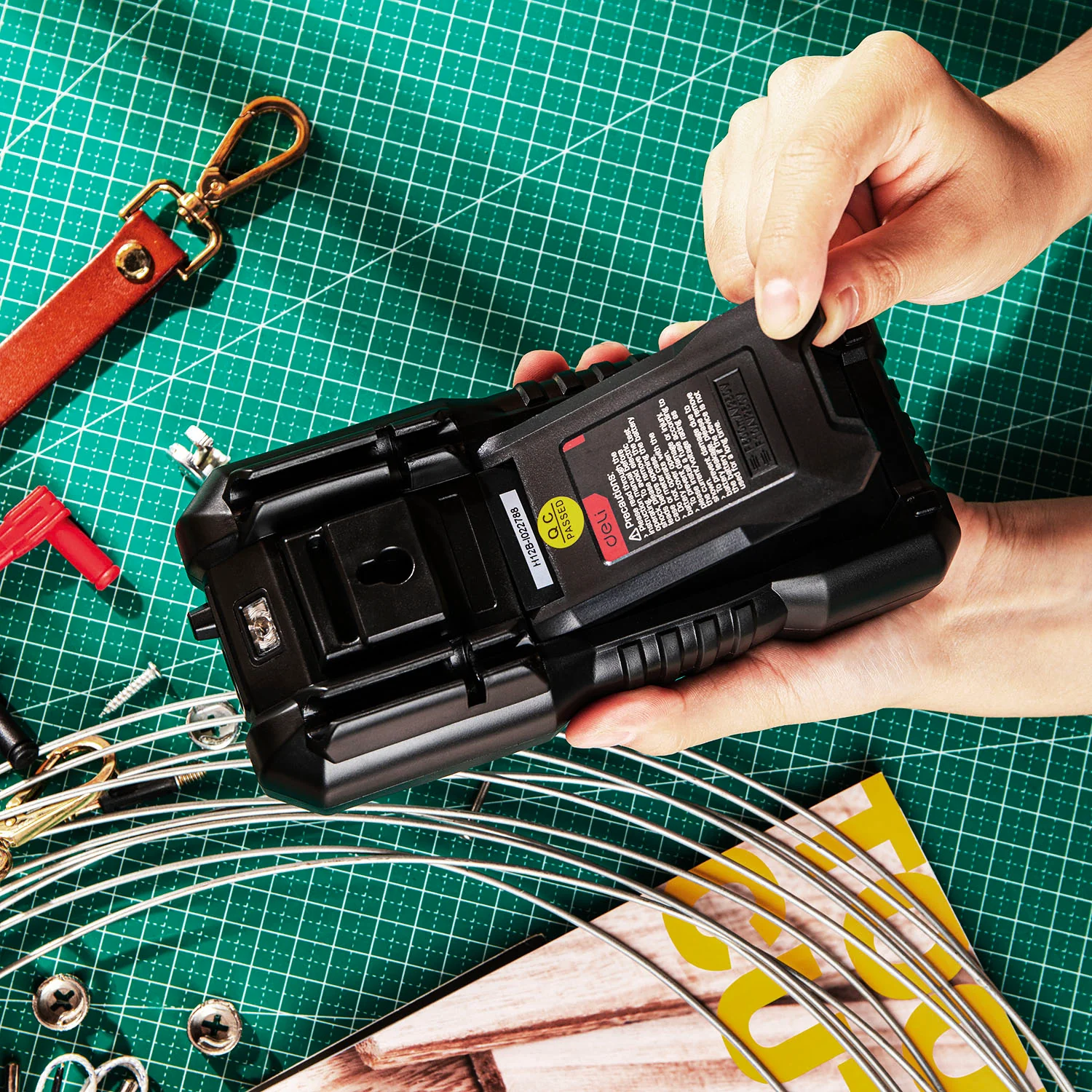

• Flashlight lighting.
• LED indication for sockets.
• Sampling rate: 3 times/second.
• The maximum product reading is 5999.
• Safe and reliable, with a safety level of CAT III 1000V.
• High voltage warning: when high voltage is detected, the screen backlit in orange light.
• This product is a 3 5/6 digital multimeter, it can be used to measure AC/DC voltage, AC/DC electricity, electrical resistance, capacitance, frequency, duty cycle, temperature and more.

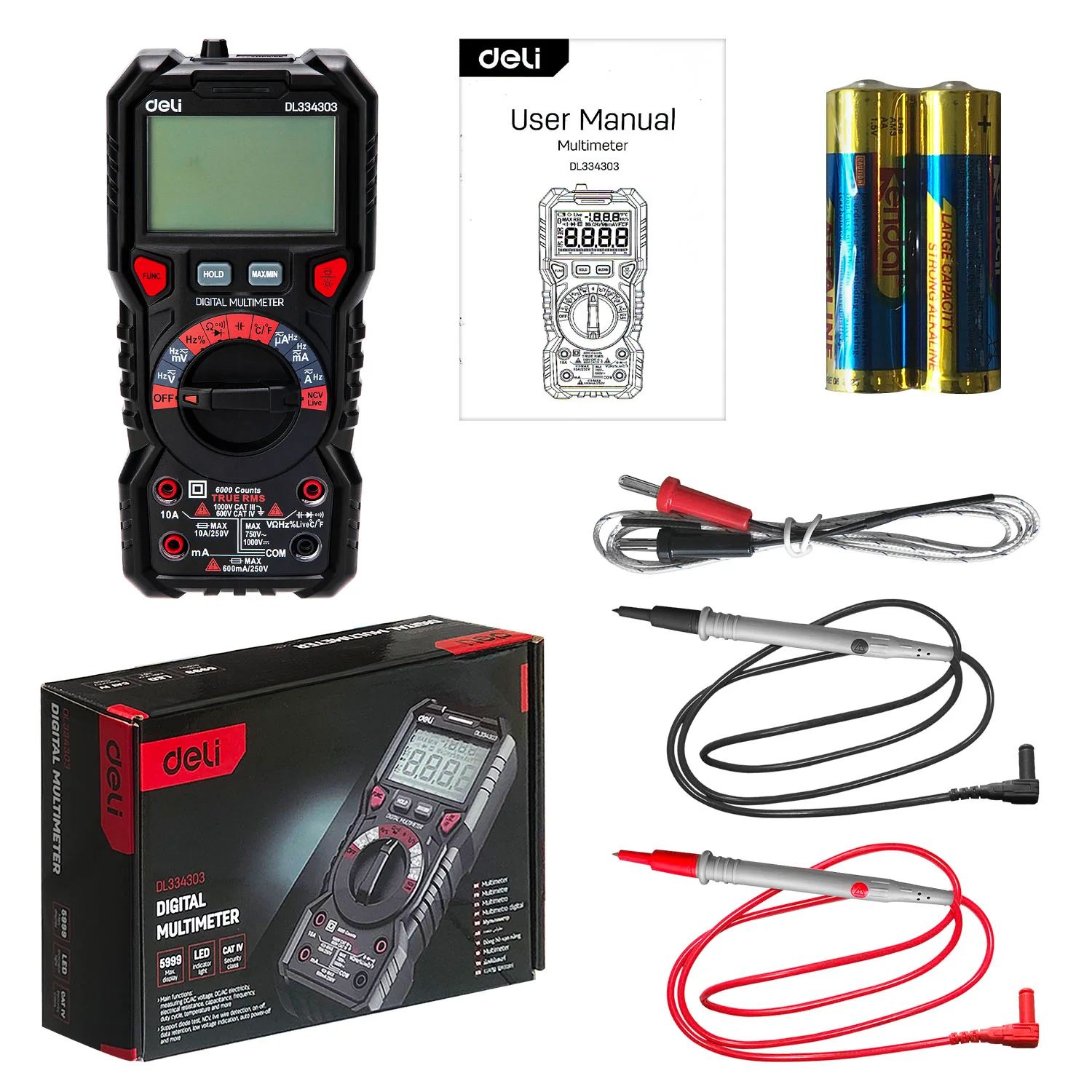

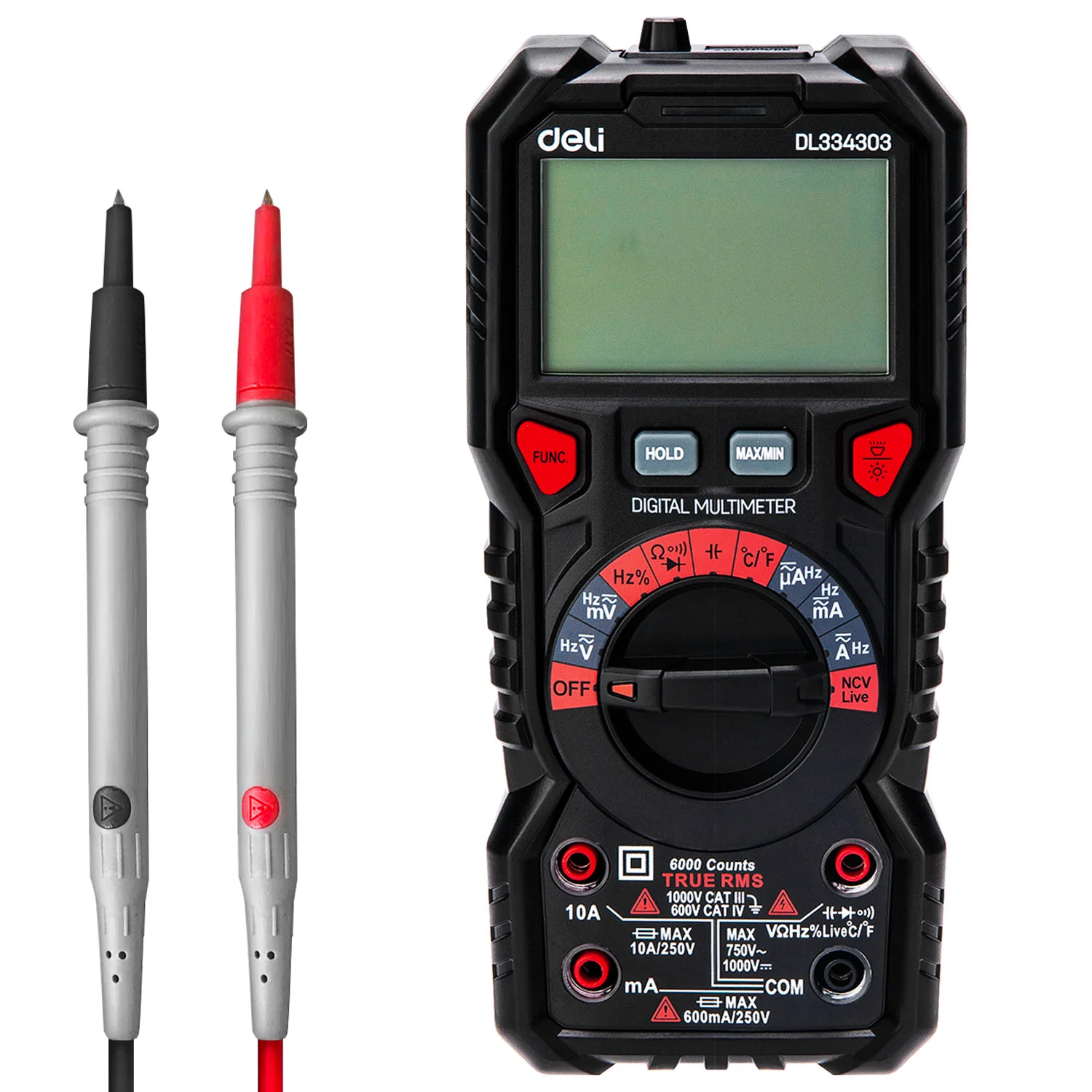

Package Contents:

Digital Multimeter – x1

AA 1.5V Battery – x2

Test Lead – x2

K Thermocouple – x2

User Manual – x1
