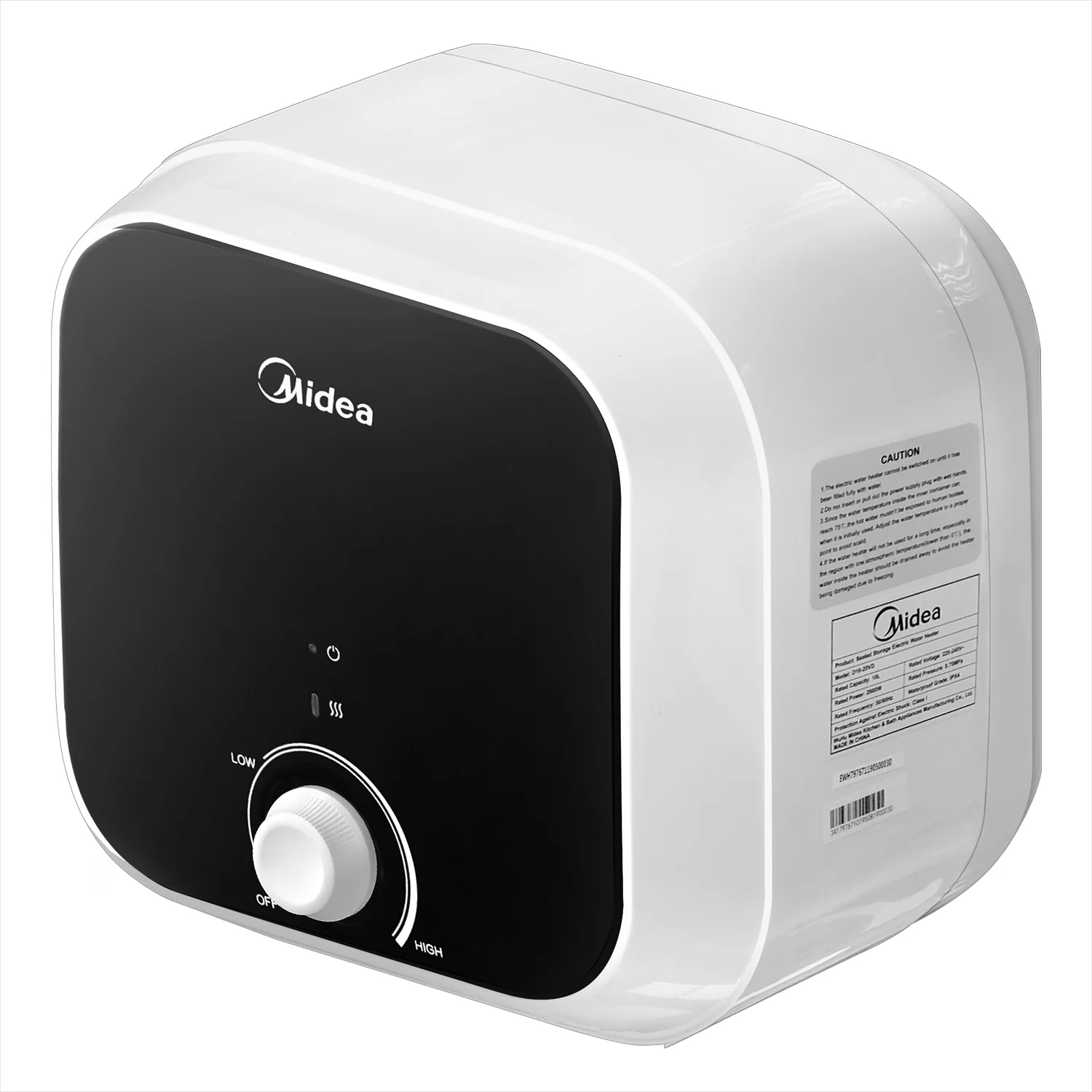

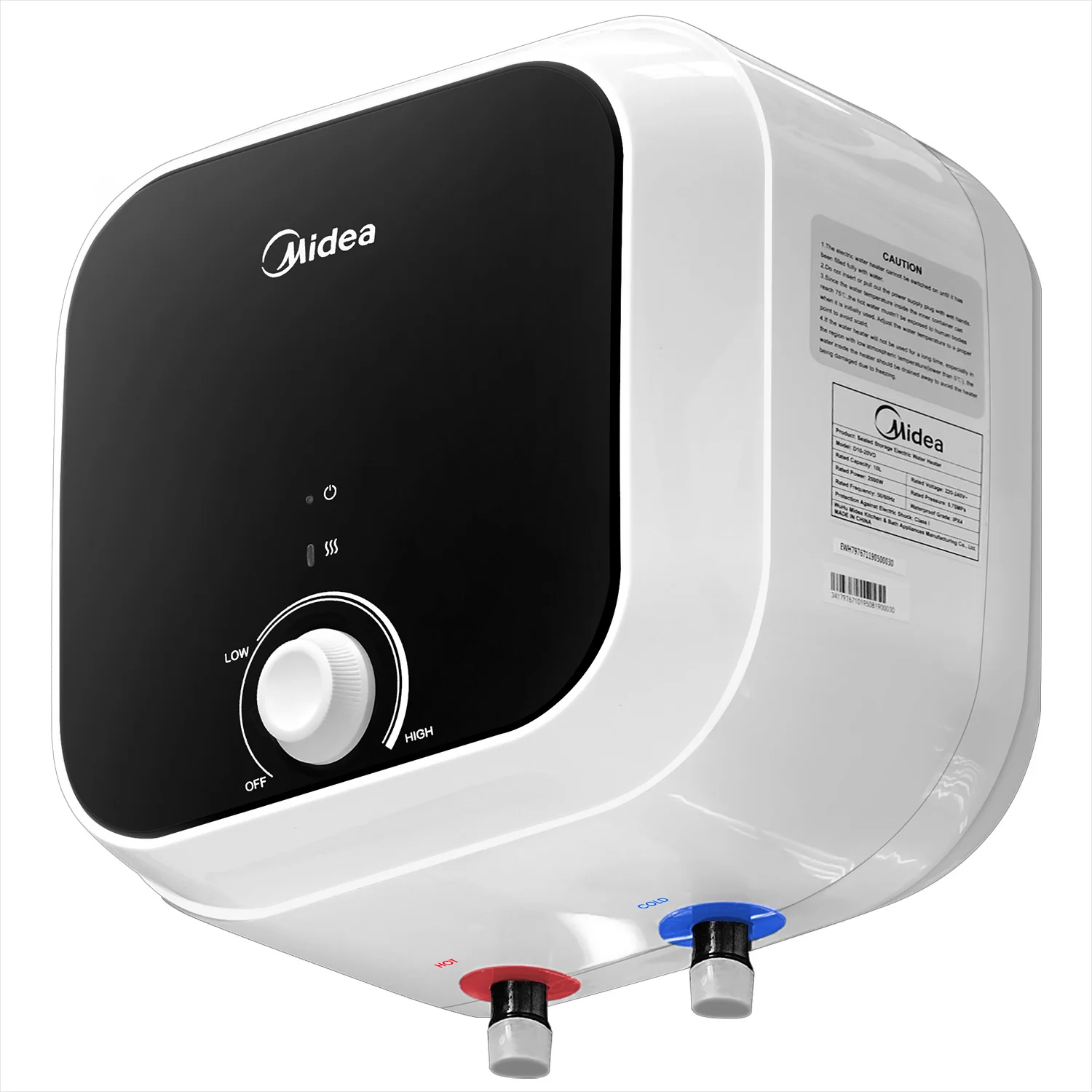

Water Heater (10L)

Midea – Storage Water Heater with Plastic Body

10L Sealed Storage Electric water heater

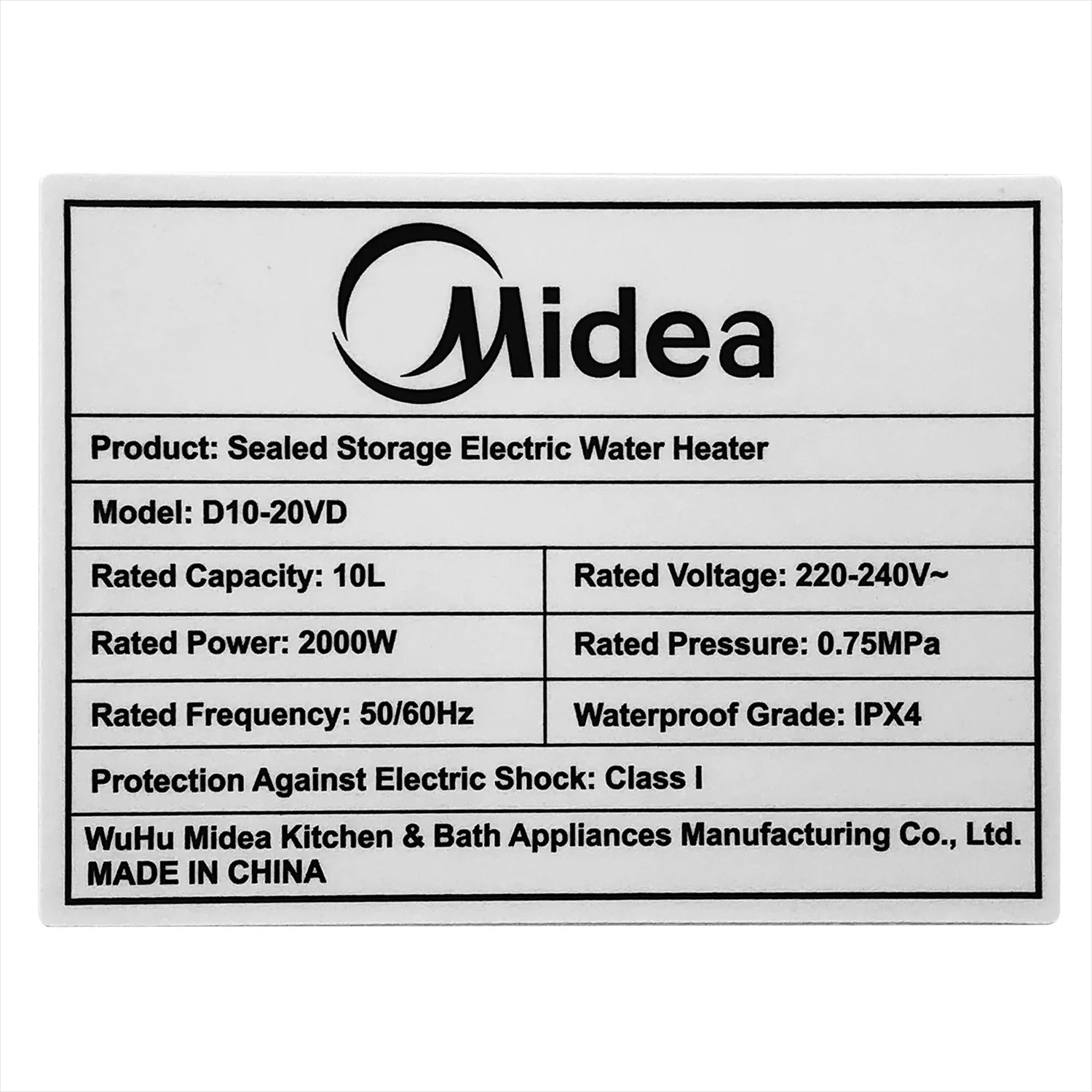

Brand: Midea

Model: D10-20VD

Volume: 10 Liter

Installation Method: Vertical & Wall Hang

Rated Power: 2000W

Rated Voltage: 220-240V~

Rated Frequency: 50/60Hz

Rated Pressure: 0.75MPa

Rated Thermostat SET: 65°C

Waterproof Grade: IPX4

Protection Class: Class I

Warranty: 12 Months Warranty

Advantages:

• Earthing Protection.
• Enamel coated tank.
• Dry heat Protection.
• Overheat Protection.
• Water-proof grade IPX4
• Over pressure Protection.
• Longer life time magnesium rod.
• Enamel coated heating element.
• Max working pressure (0.75MPa).

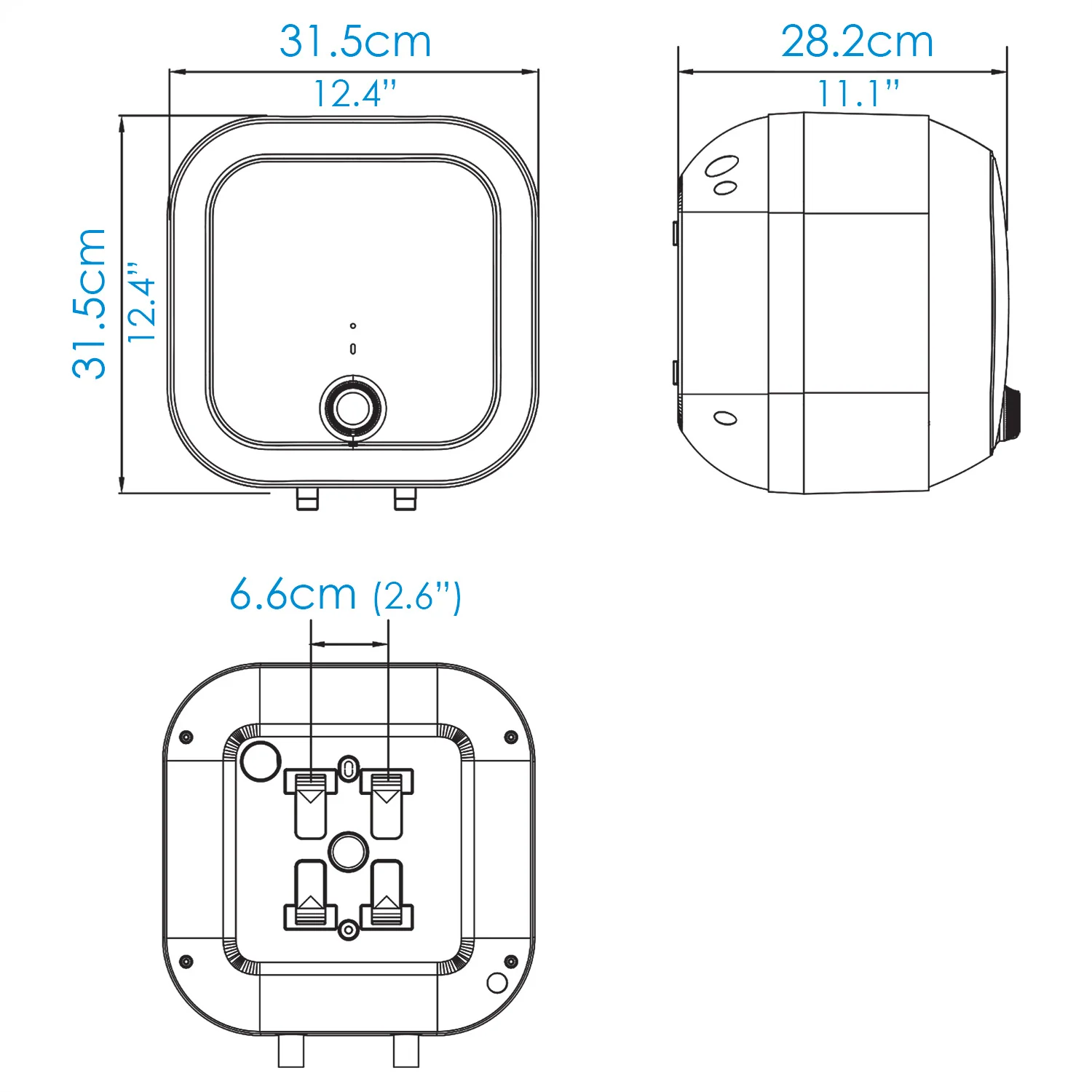

Dimension & Weight:

Product Dimension (Dia. x H): 31.5 x 28.2 x 31.5cm (12.4” x 11.1” x 12.4”)

Packing Dimension (W x D x H): 38 x 34.5 x 32.5cm (15” x 13.6” x 12.8”)

Gross Weight: 8.4kg

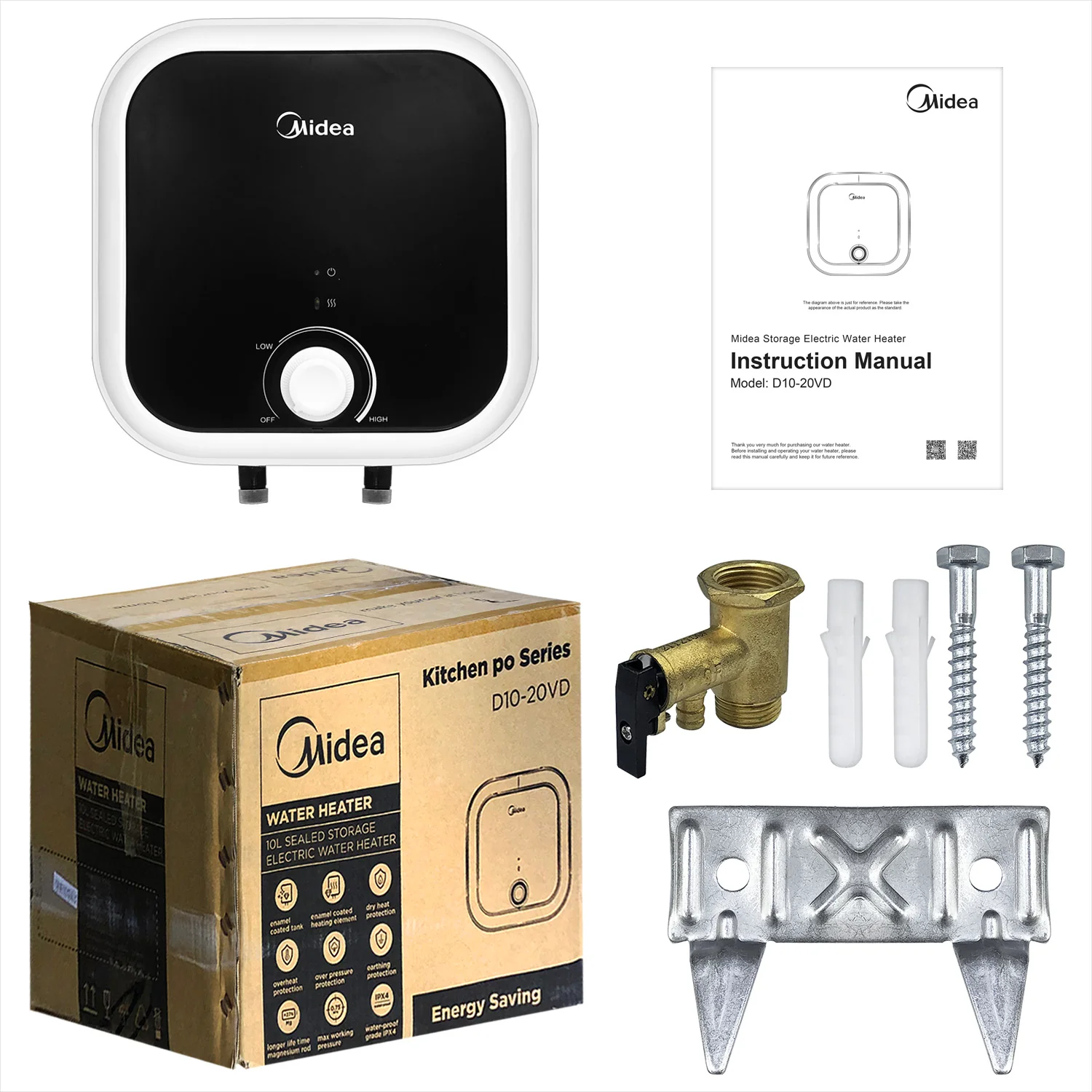

Packing Contents:

• Water Heater (10L) – x1
• Safety valve – x1
• Wall Bracket – x1
• Screw – x2
• Screw plugs – x2
• User Manual – x1

---

Basic Installation Charge Note:

The basic installation charge covers the wall mounting and installation of the water heater only.

Please ensure that:

• A water inlet and outlet connection (including hoses and valves) is available within reach of the water heater installation location.
• A dedicated 15A power socket is installed within reach of the water heater power cord.

Any additional plumbing, electrical work, extension of water pipes, relocation ofconnections, or installation of new power points is not included in the basic installation charge and will be charged separately if required.
