Instant Water Heater

Note: Power cord an plug not included.

Midea – Instant Water Heater

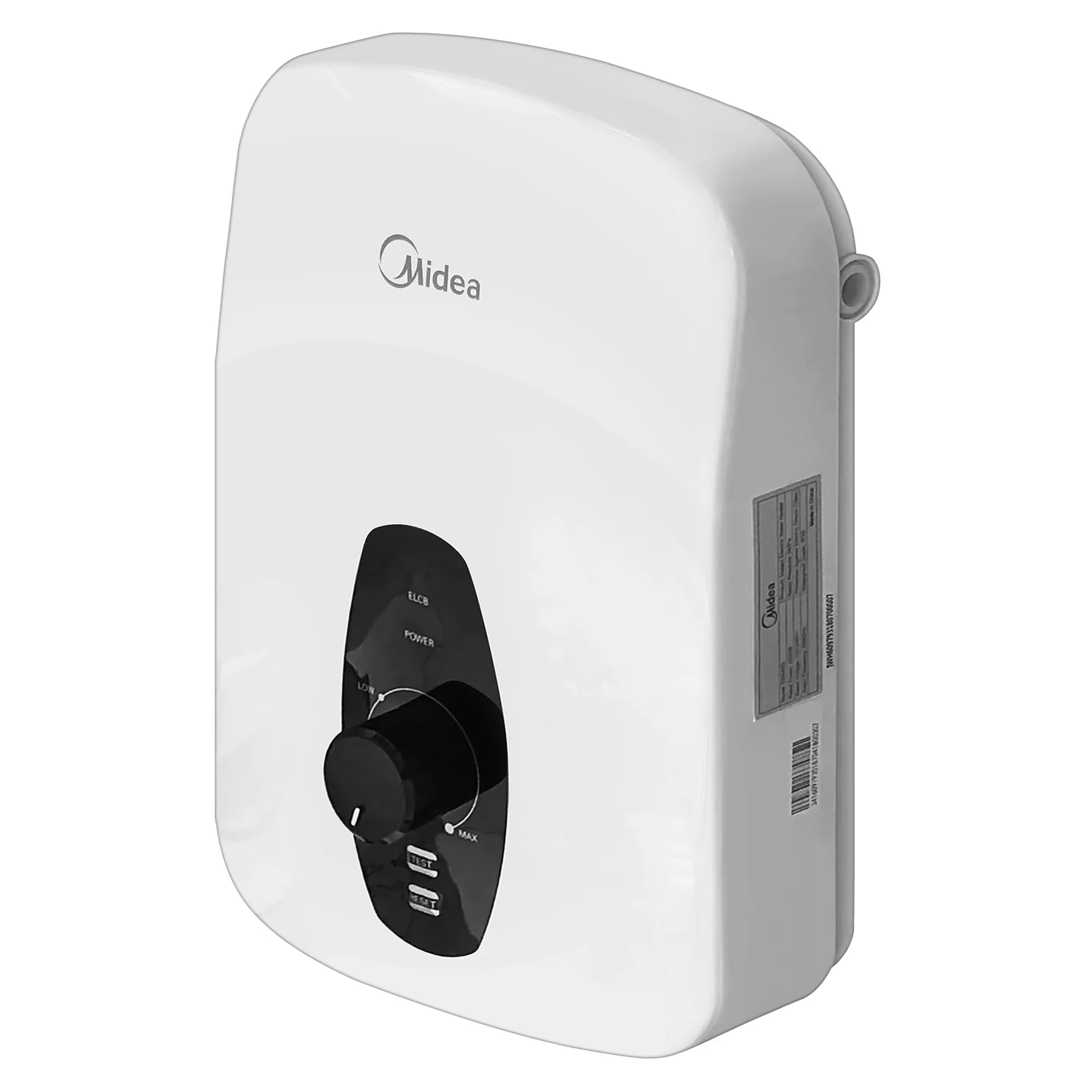

Electric Instant Water Heater

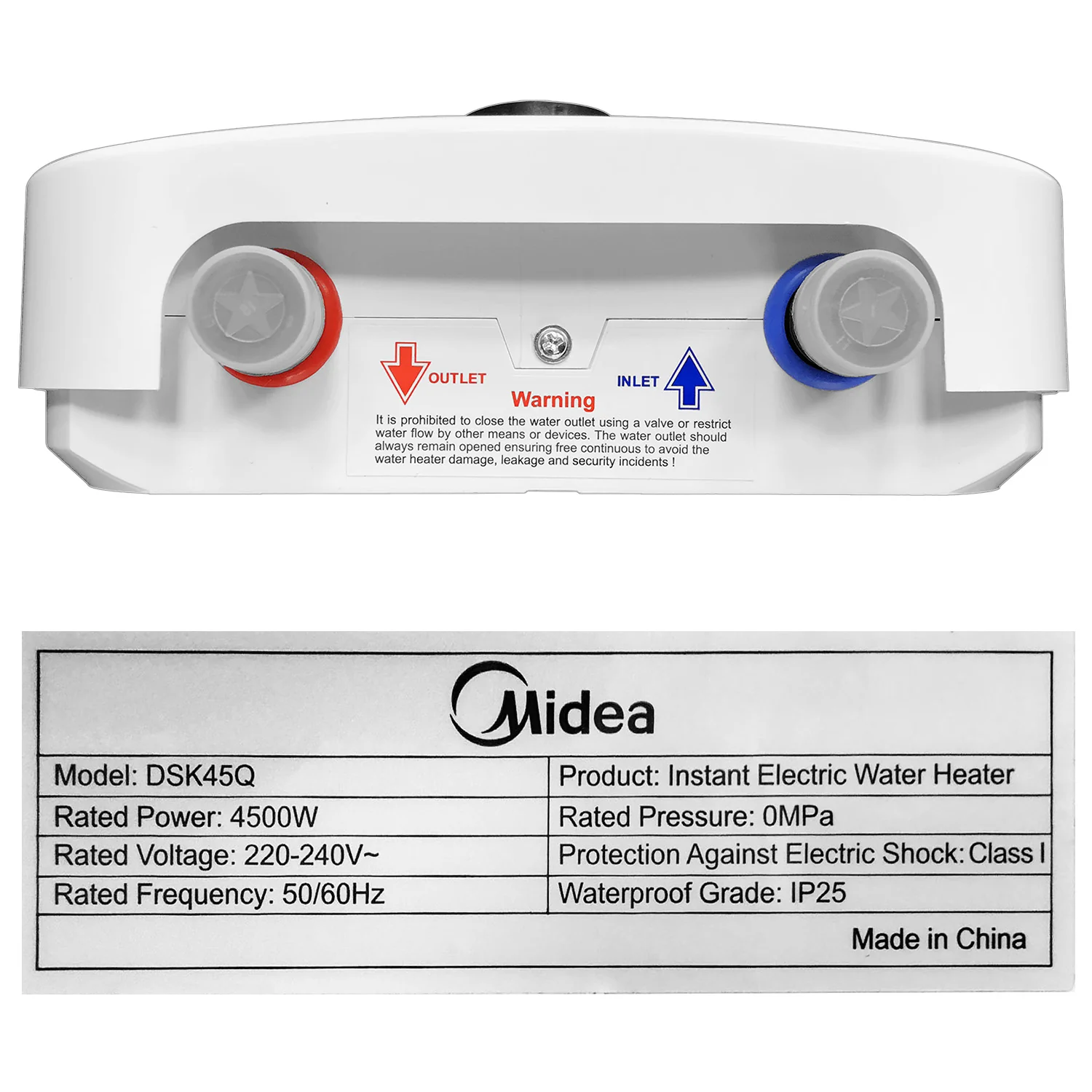

Brand: Midea

Model: DSK45Q

Installation Method: Wall-Mounting

Rated Power: 4500W

Rated Voltage: 220-240V~

Rated Frequency: 50/60Hz

Rated Current: 19.6A

Dia. of Wire Code: 2.5mm²

Air Switch: ≥25A

Rated Pressure: 0 MPa

Flow Rate (min.): 1.2 Liters/minute

Inlet Pressure (min.): 0.02 MPa

Inlet Pressure (max.): 0.3 MPa

Protection Class: Class I

Outlet Water Temperature (max.): 55 °C

Waterproof Grade: IP25

Max Temperature: 95°C

Heating Elements Material: Copper

Operating Condition: Open Type

Pump: No

Warranty: 12 Months Warranty

Advantages:

• • Built-in ELCB: Cuts off current flow in the event of any current leakage.

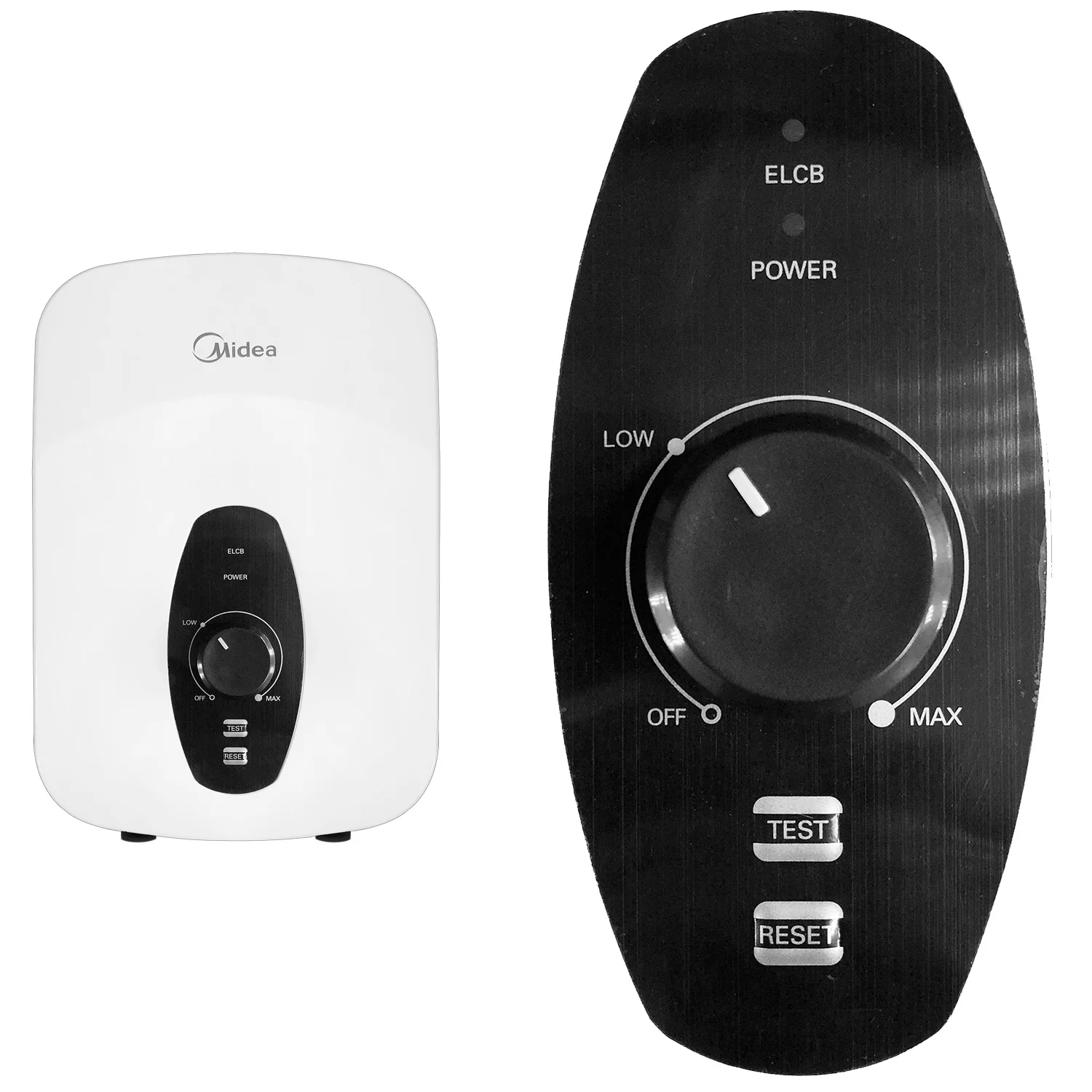

  • Stepless control: Shower Temperature can be selected according to personal preference.
  • Splash-proof IP25 Standard: Protection against water seeping into heater’s internal mechanism.
  • Built-in Auto flow sensor: Shuts off heater if water flow is lower than 1.2 liters/minute, water saving.
  • Precise thermal cut-out: Electronic detector auto shut off in the event of water temperature over 55°C.
  • Nylon Glass Fibre: Strong & Durable non-conductive material for further insulation against electric shock.



Dimension & Weight:

Product Dimension (W x D x H): 22.4 x 9.3 x 33cm (8.8” x 3.7” x 13”)

Package Dimension (W x D x H): 26 x 10.5 x 58cm (10.2” x 4.1” x 22.8”)

Net Weight: 1.6kg

Gross Weight: 3kg

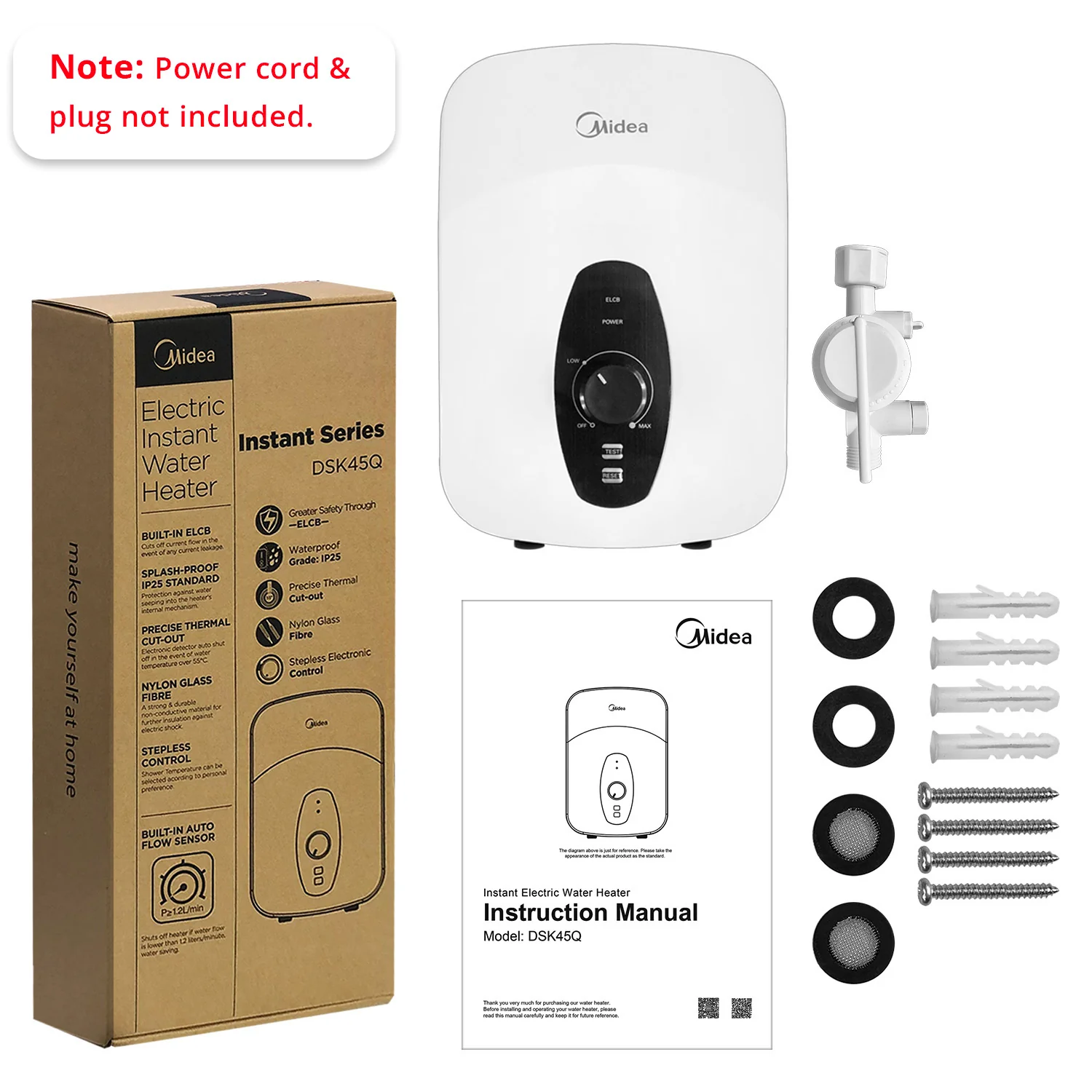

Packing Contents:

• Water heater – x1

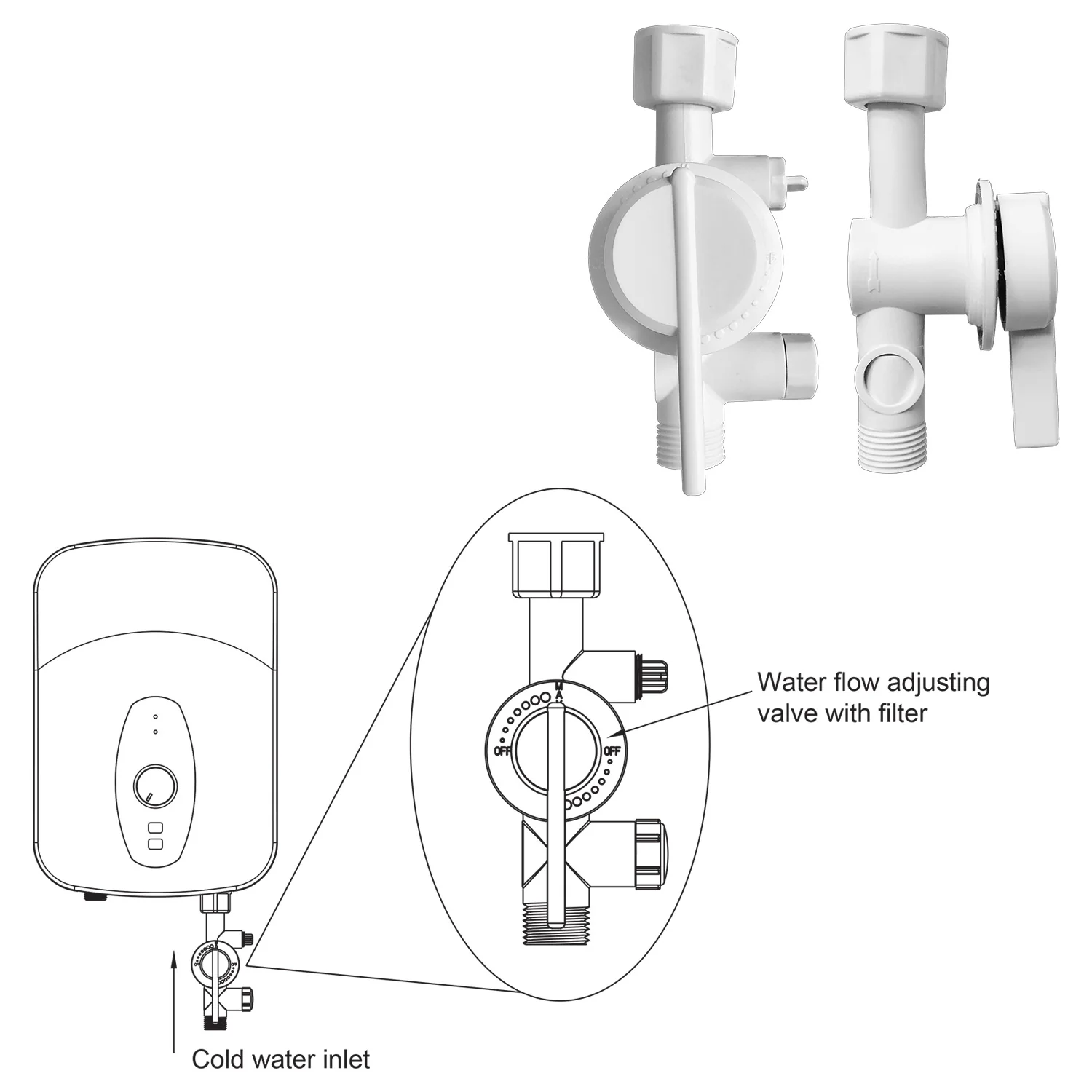

• Filter control valve – x1
• Screws – x4
• Screw plugs – x4
• Flat gaskets – x4
• User manual – x1

---

Basic Installation Charge Note:

The basic installation charge covers the wall mounting and installation of the water heater only.

Please ensure that:

• A water inlet and outlet connection (including hoses and valves) is available within reach of the water heater installation location.
• A dedicated 15A power socket is installed within reach of the water heater power cord.

Any additional plumbing, electrical work, extension of water pipes, relocation ofconnections, or installation of new power points is not included in the basic installation charge and will be charged separately if required.
