Water Heater (80L)

Midea – Water Heater with Metal Body

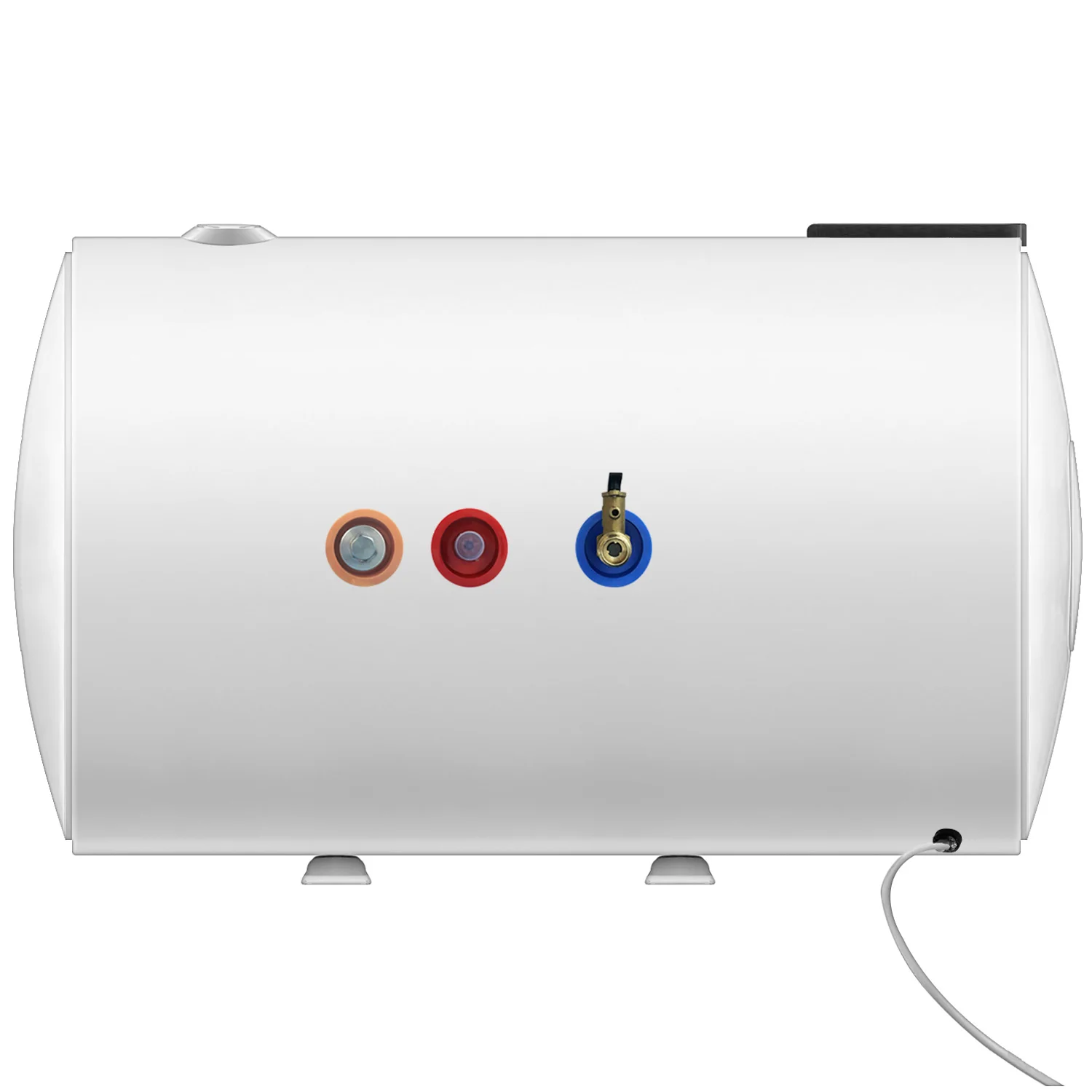

80L Sealed Storage Electric Water Heater

Model: D80-20A6

Brand: Midea

Volume: 80 Liter

Installation Method: Horizontal

Rated Power: 1500W

Rated Voltage: 220V

Rated Pressure: 0.75 MPa

Water Temperature (max.): 75°C

Waterproof Grade: IPX4

Protection Class: Class I

Warranty: 12 Months Warranty

Advantages:

• Earthing protection.
• Dry heat protection.
• Enamel coated tank.
• Overheat protection.
• Water-proof grade IPX4.
• Over pressure protection.
• Working pressure 0.8MPa



Dimension & Weight:

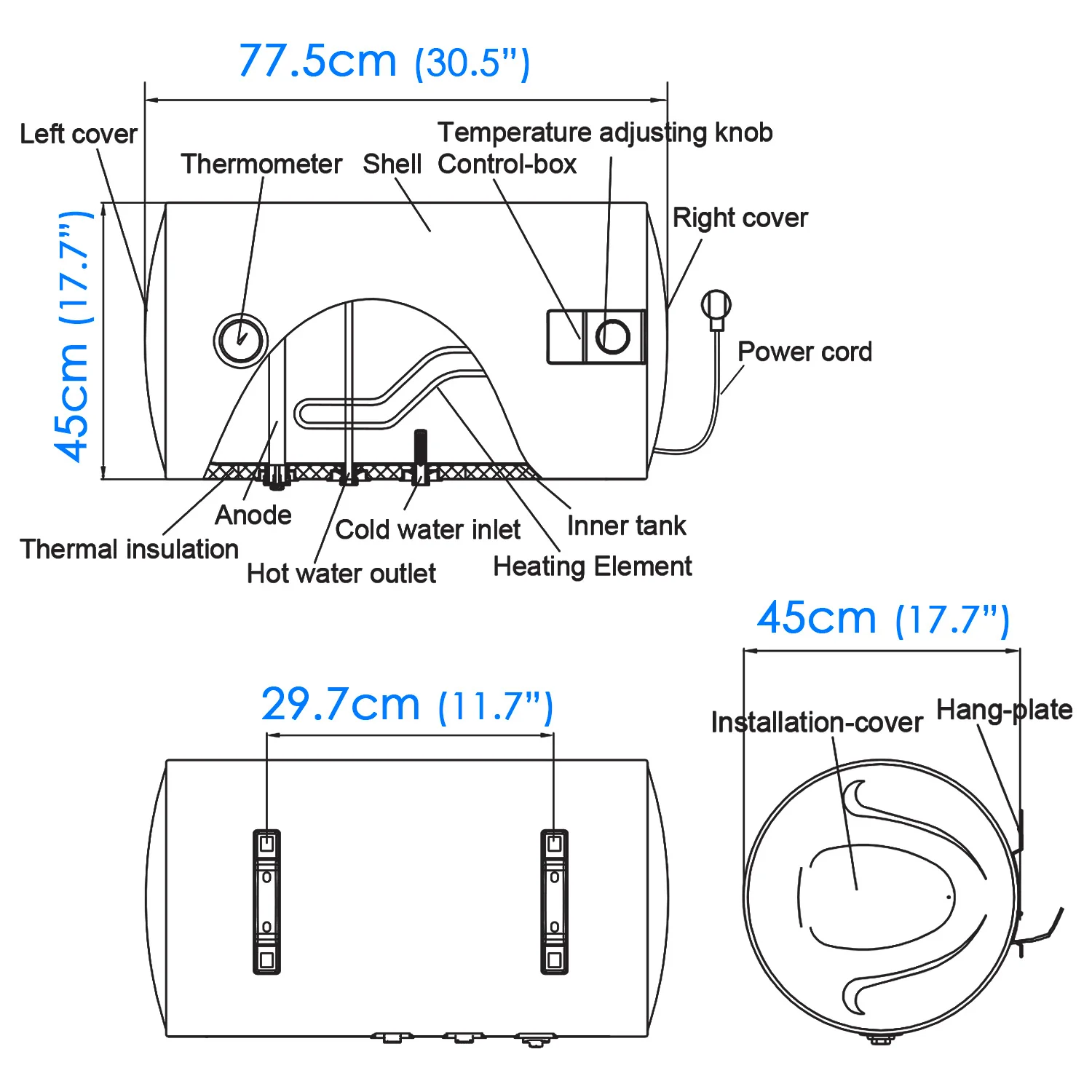

Product Dimension (W x Dia.): 77.5 x 45cm (30.5” x 17.7”)

Packing Dimension (W x D x H): 51.5 x 51.5 x 86.5cm (20.3” x 20.3” x 34.1”)

Gross Weight: 27.1kg

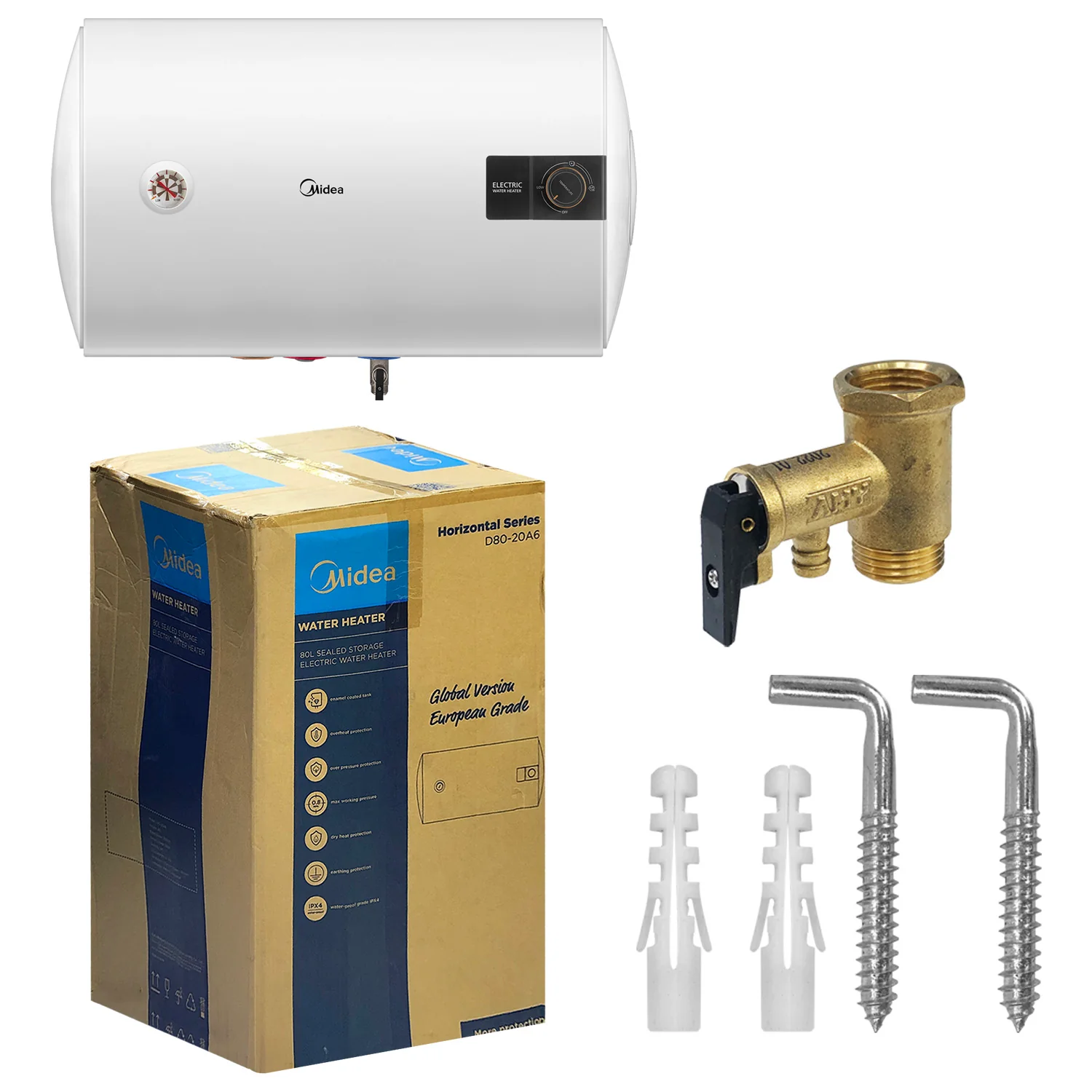

Packing Contents:

• Water Heater (80L) – x1
• Safety valve – x1
• L-Shaped Hook Screws – x2
• Screw plugs – x2

---

Basic Installation Charge Note:

The basic installation charge covers the wall mounting and installation of the water heater only.

Please ensure that:

• A water inlet and outlet connection (including hoses and valves) is available within reach of the water heater installation location.
• A dedicated 15A power socket is installed within reach of the water heater power cord.

Any additional plumbing, electrical work, extension of water pipes, relocation ofconnections, or installation of new power points is not included in the basic installation charge and will be charged separately if required.
