Branch Header (1:2)

HEADER FOR 2 BRANCHES
Model no: DXFQT2-02
Brand: MIDEA
ALU: 15111700001940

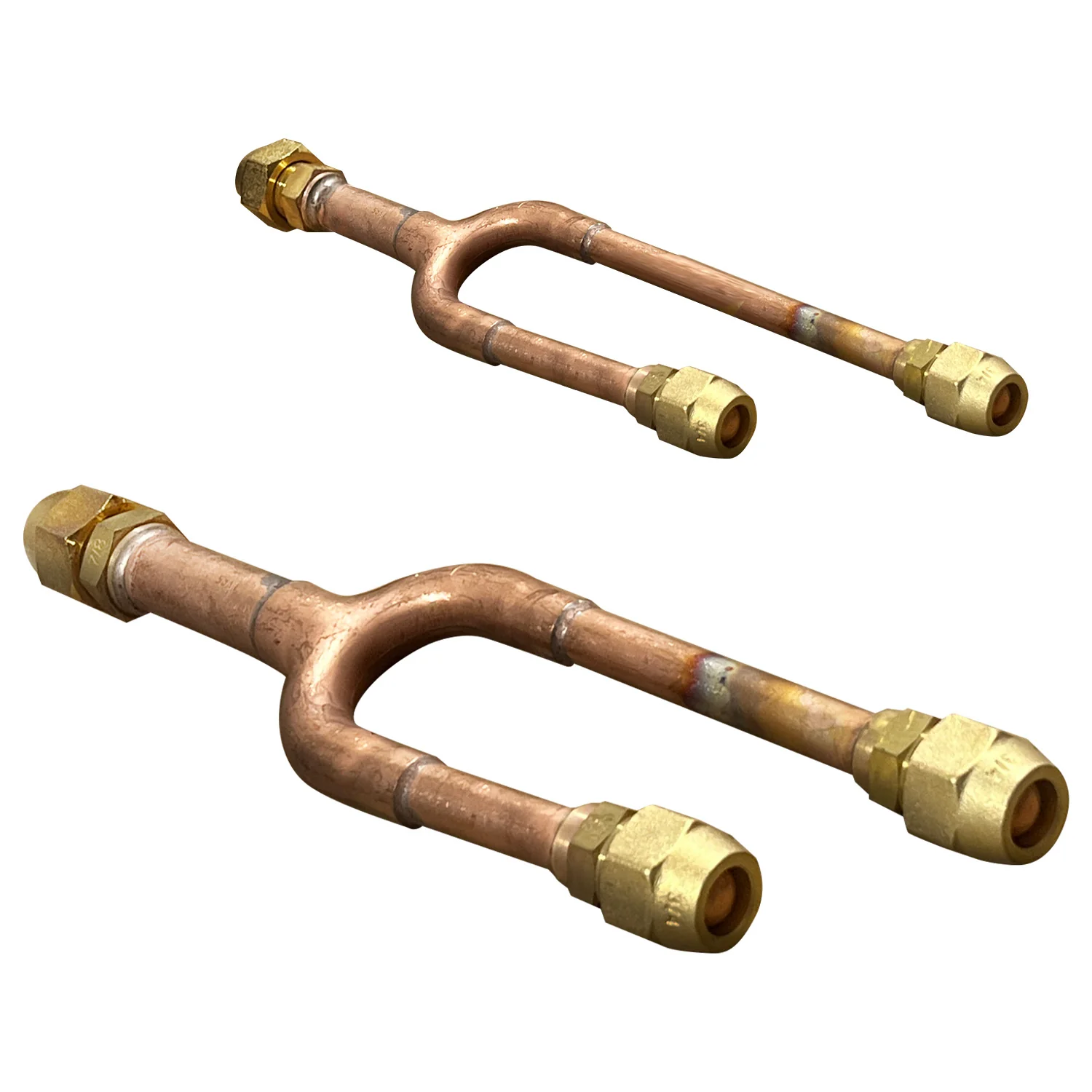

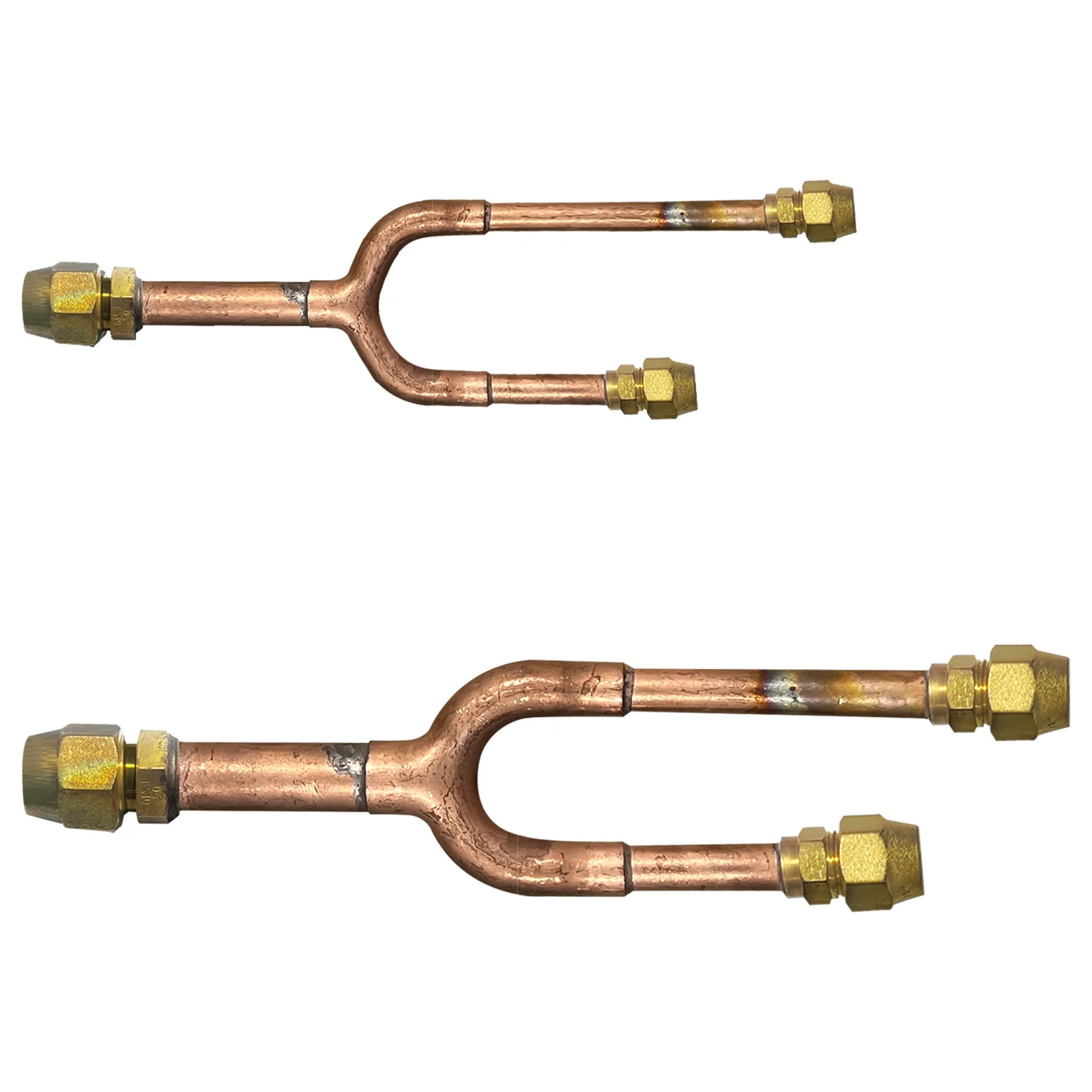

Midea 2-Branch Header
Header of 2 Branches (1:2)
Brand: Midea
Model: DXFQT2-02
Application: Midea VRF Systems
No. of Branches: 2 Indoor Unit Connections
Material: Copper
Features:
  • Designed for Midea VRF air conditioning systems only.
  • Each branch outlet is intended for connection to a single indoor unit.
  • Supplied with pipe adaptors to accommodate different pipe diameters.
  • Supplied with insulation materials to help reduce heat loss and condensation.
  • Manufactured from durable copper for reliable performance and long service life.
  • Includes separate gas-side and liquid-side branch headers for proper flow management.

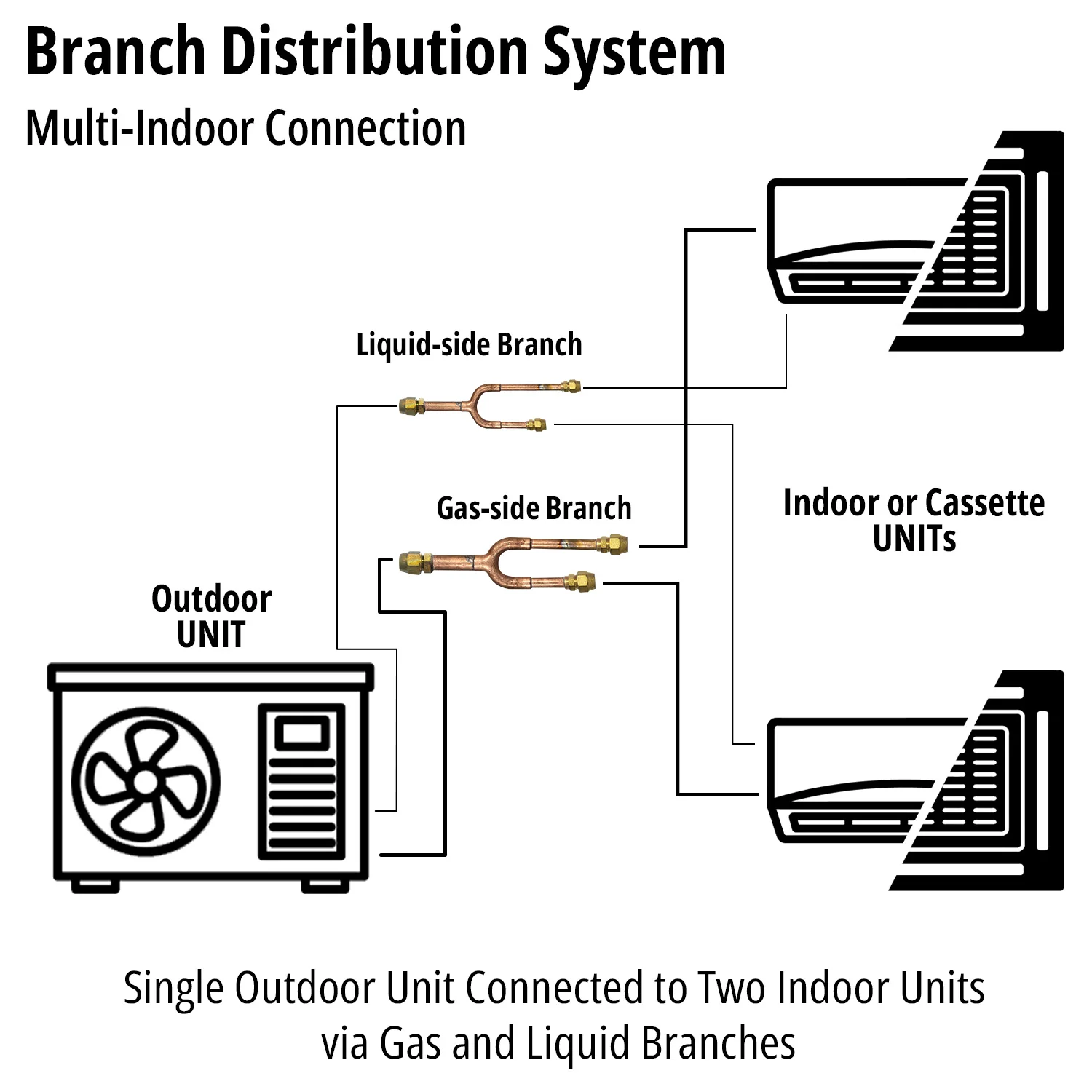

  • Distributes flow from a single main line (2-branch header) to two indoor unit connections.

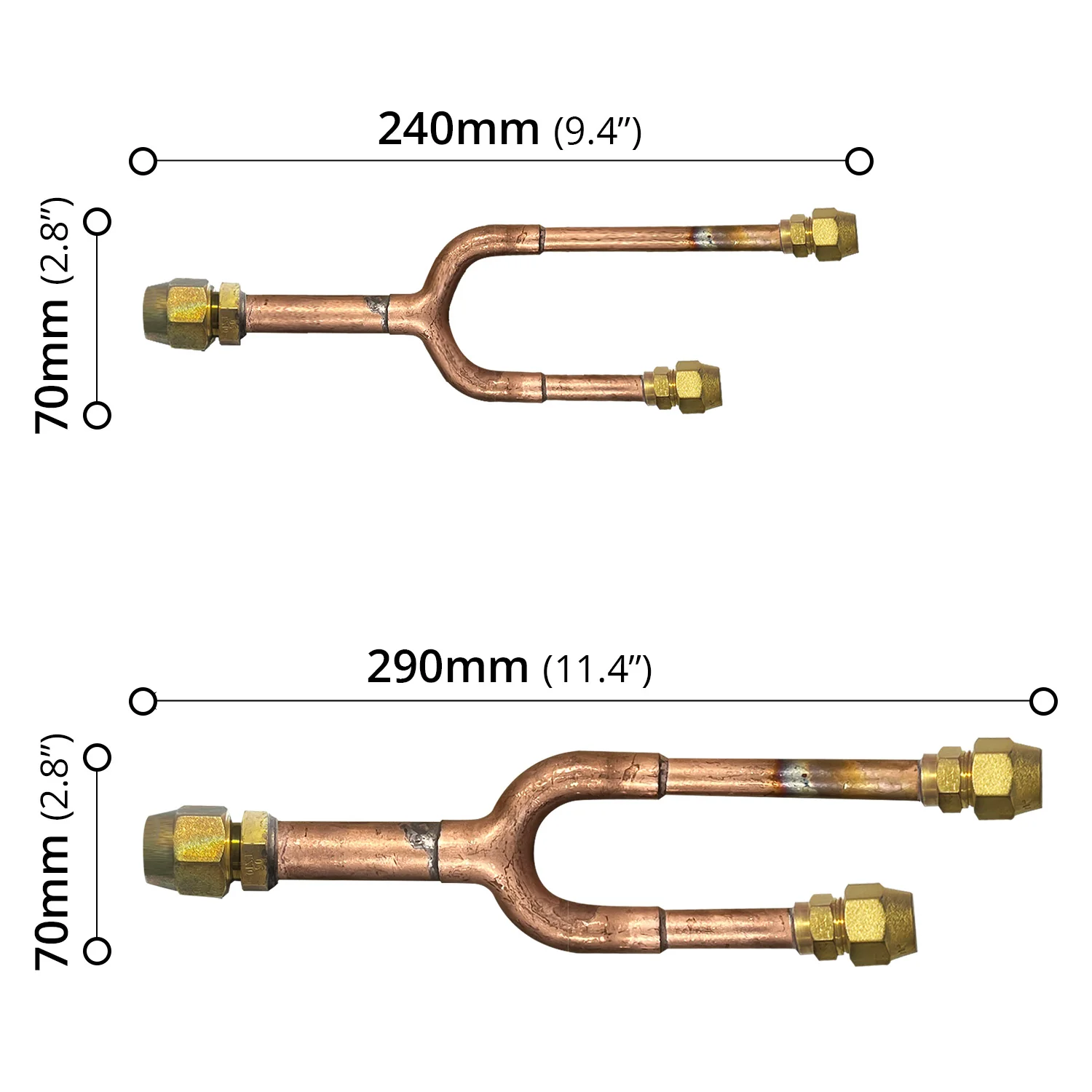

Dimensions & Weight:
Product Dimension (Liquid Side): 240 x 70mm (9.4” x 2.8”)
Product Dimension (Gas Side): 290 x 70mm (11.4” x 2.8”)
Packing Dimension (W x D x H): 310 x 125 x 130mm (12.2” x 4.9” x 5.1”)
Net Weight: 0.6kg
Gross Weight: 1.4kg

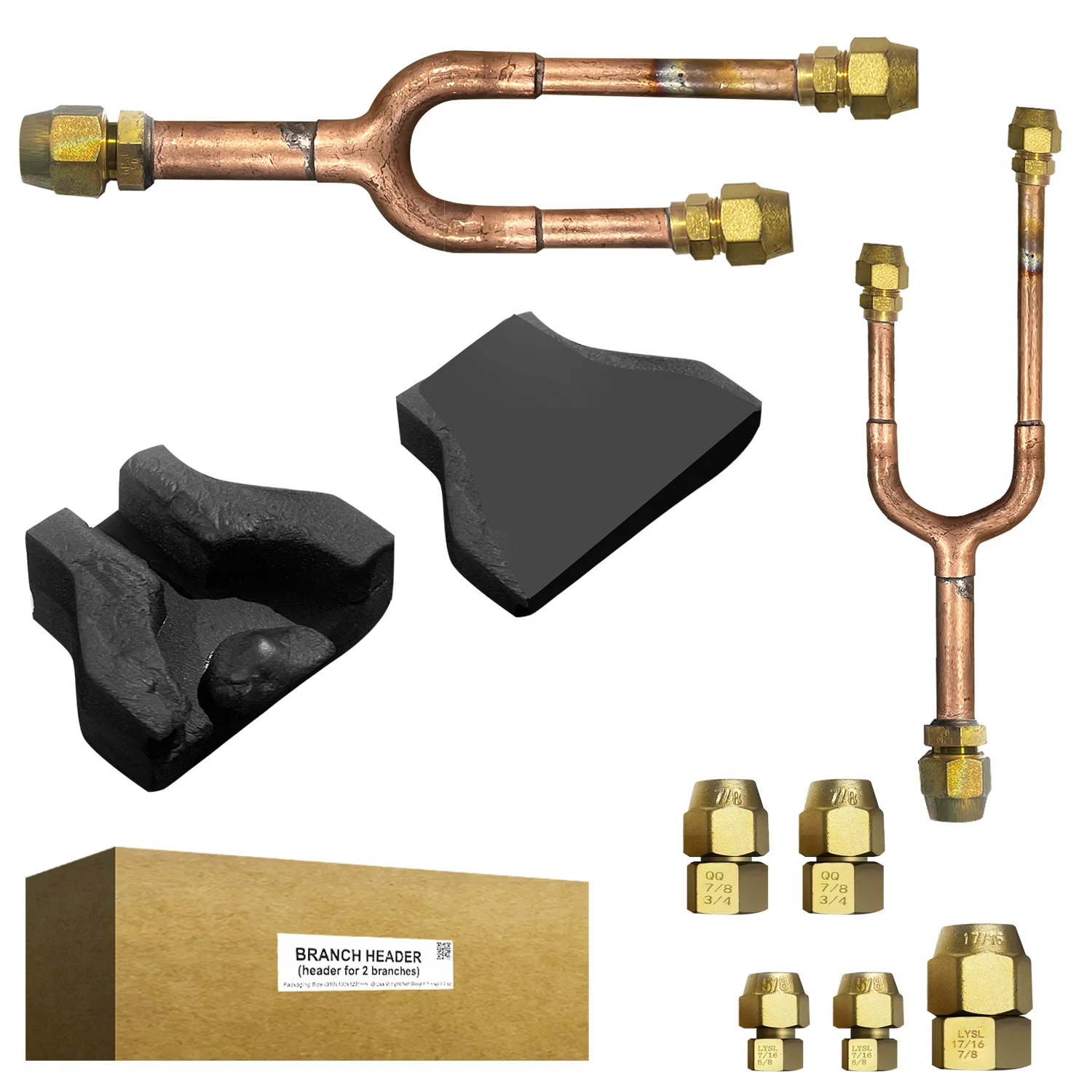

Packing Contents:
2-Branch Header (Gas side) x1
2-Branch Header (Liquid side) x1
Heat Insulation Material x2

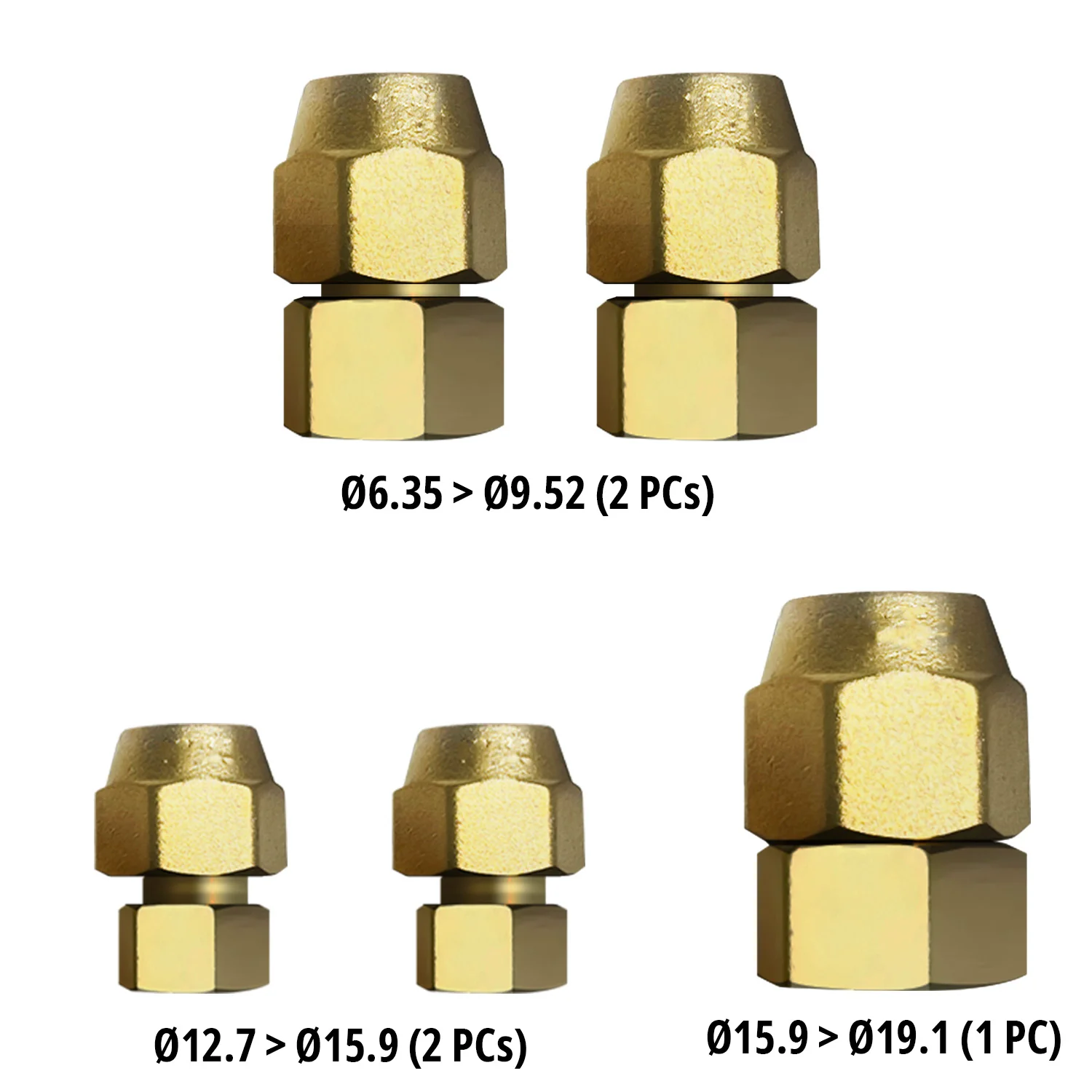

Pipe Adapters Ø6.35 → Ø9.52 x2
Pipe Adapters Ø12.7 → Ø15.9 x2
Pipe Adapters Ø15.9 → Ø19.1 x1
Installation Manual x1
