HEADER FOR 3 BRANCHES
Model no: DXFQT3-02
Brand: MIDEA
ALU: 15111700001936

Midea 3-Branch Header
Header of 3 Branches (1:3)
Brand: Midea
Model: DXFQT3-02
Application: Midea VRF Systems
No. of Branches: 3 Indoor Unit Connections
Material: Copper
Features:
  • Designed for Midea VRF air conditioning systems only.
  • Each branch outlet is intended for connection to a single indoor unit.
  • Supplied with pipe adaptors to accommodate different pipe diameters.
  • Supplied with insulation materials to help reduce heat loss and condensation.
  • Manufactured from durable copper for reliable performance and long service life.

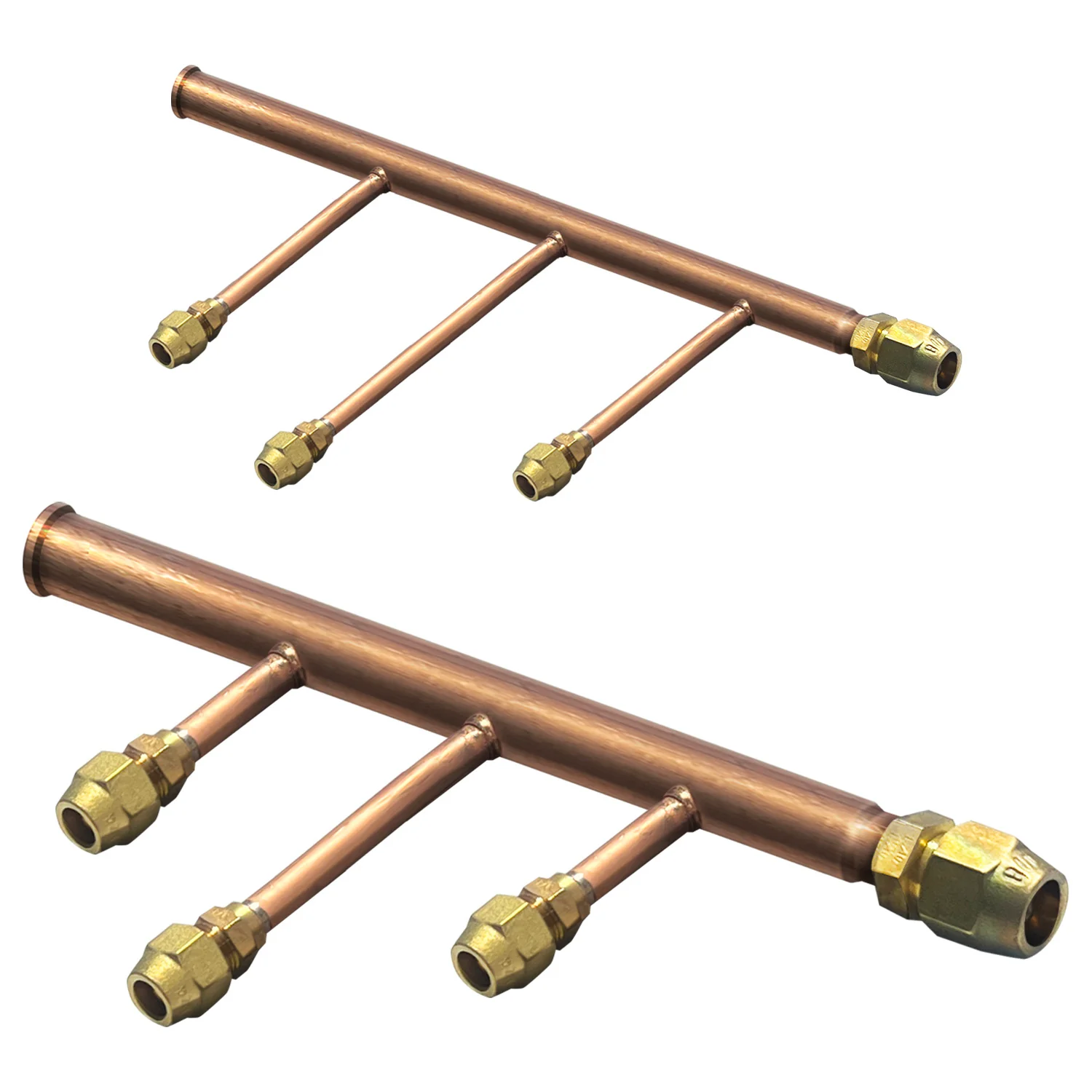

  • Includes separate gas-side and liquid-side branch headers for proper flow management.

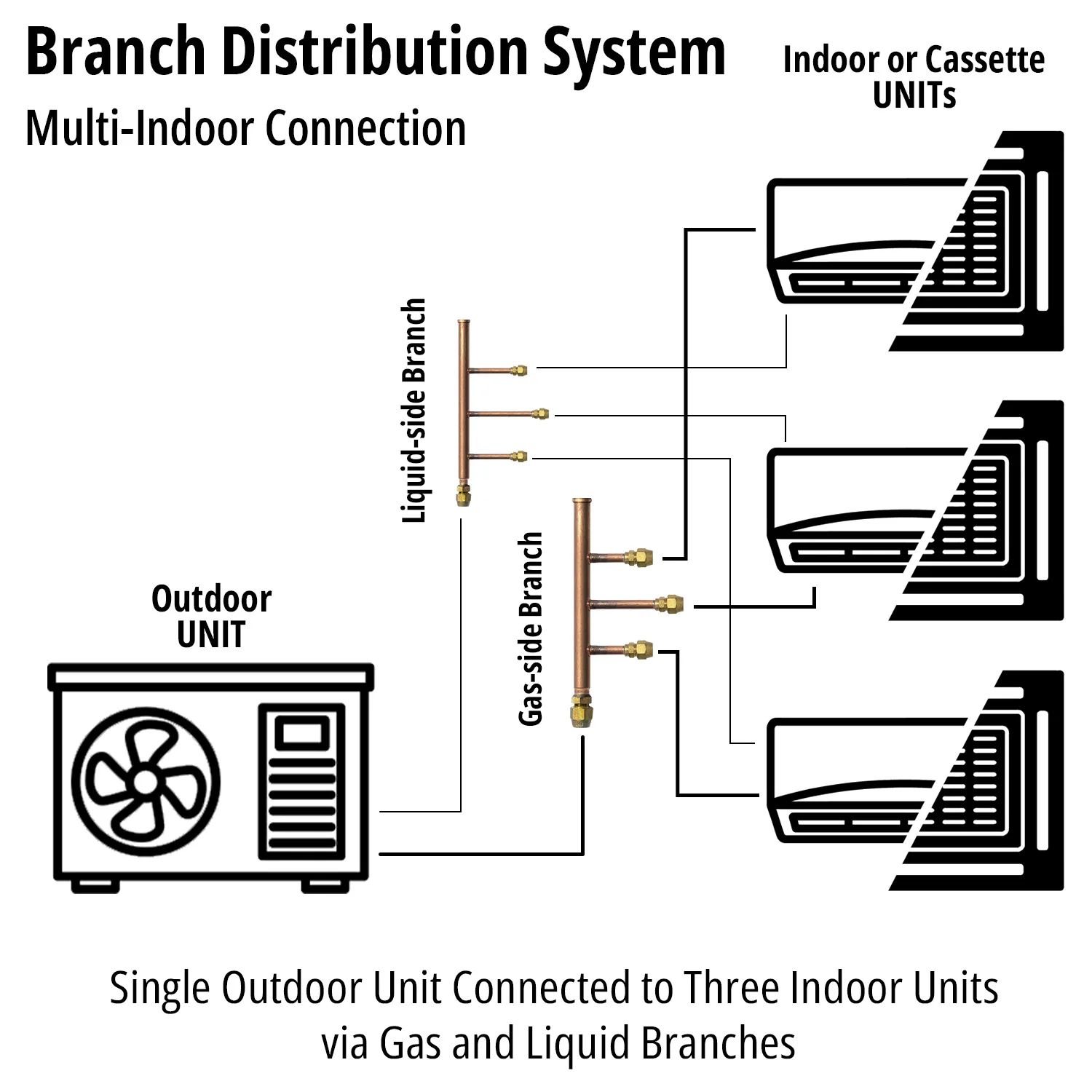

  • Distributes flow from a single main line (3-branch header) to three indoor unit connections.
Dimensions & Weight:
Product Dimension (Liquid Side): 305 x 135mm (12” x 5.3”)
Product Dimension (Gas Side): 275 x 150mm (10.8” x 5.9”)
Packing Dimension (W x D x H): 465 x 255 x 115mm (18.3” x 10” x 4.5”)
Net Weight: 0.8kg
Gross Weight: 2.2kg
Packing Contents:
3-Branch Header (Gas side) x1
3-Branch Header (Liquid side) x1
Heat Insulation Material x2

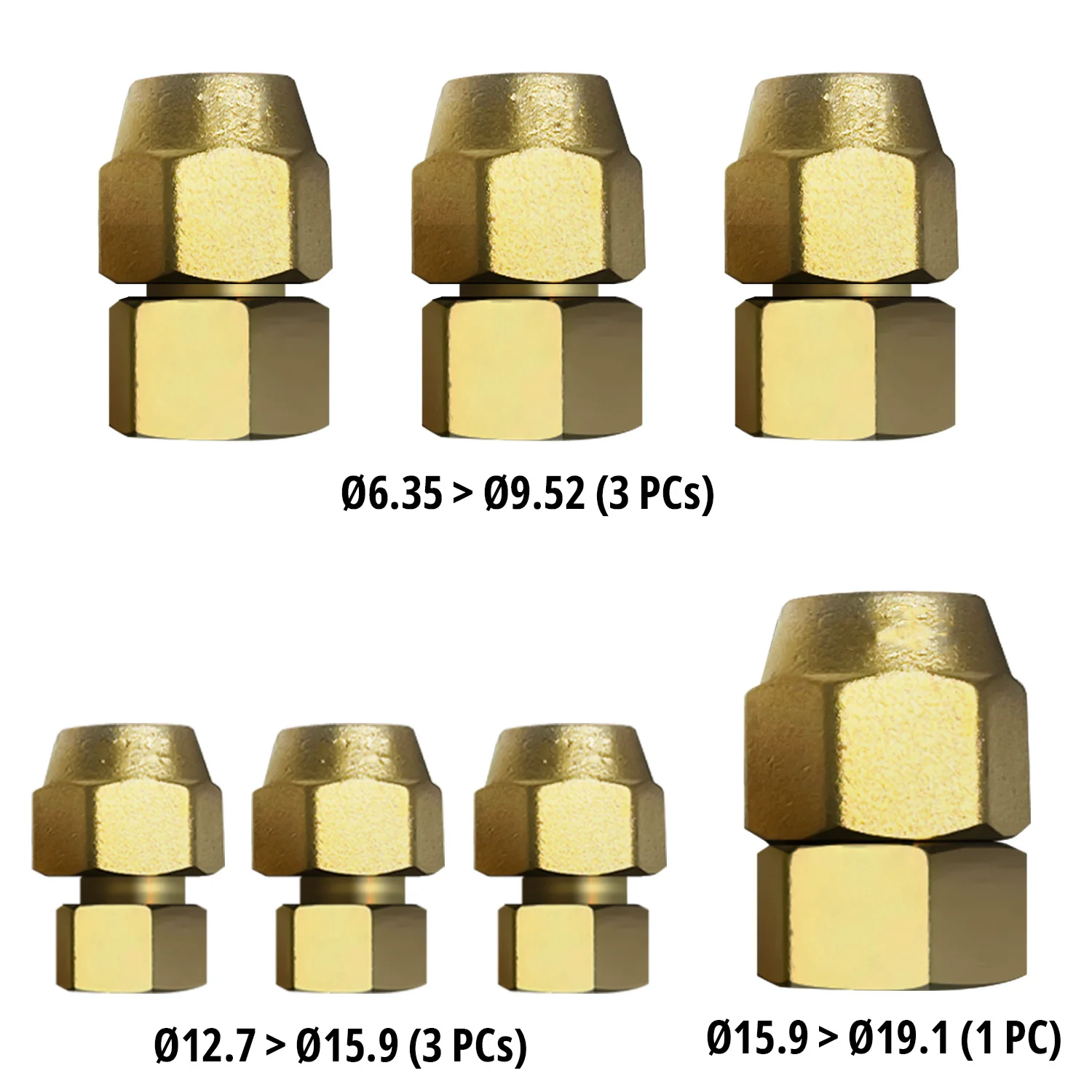

Pipe Adapters Ø6.35 → Ø9.52 x3
Pipe Adapters Ø12.7 → Ø15.9 x3
Pipe Adapters Ø15.9 → Ø19.1 x1
Installation Manual x1
