Branch Header (1:4)

HEADER FOR 4 BRANCHES
Model no: DXFQT4-02
Brand: MIDEA
ALU: 15111700001942

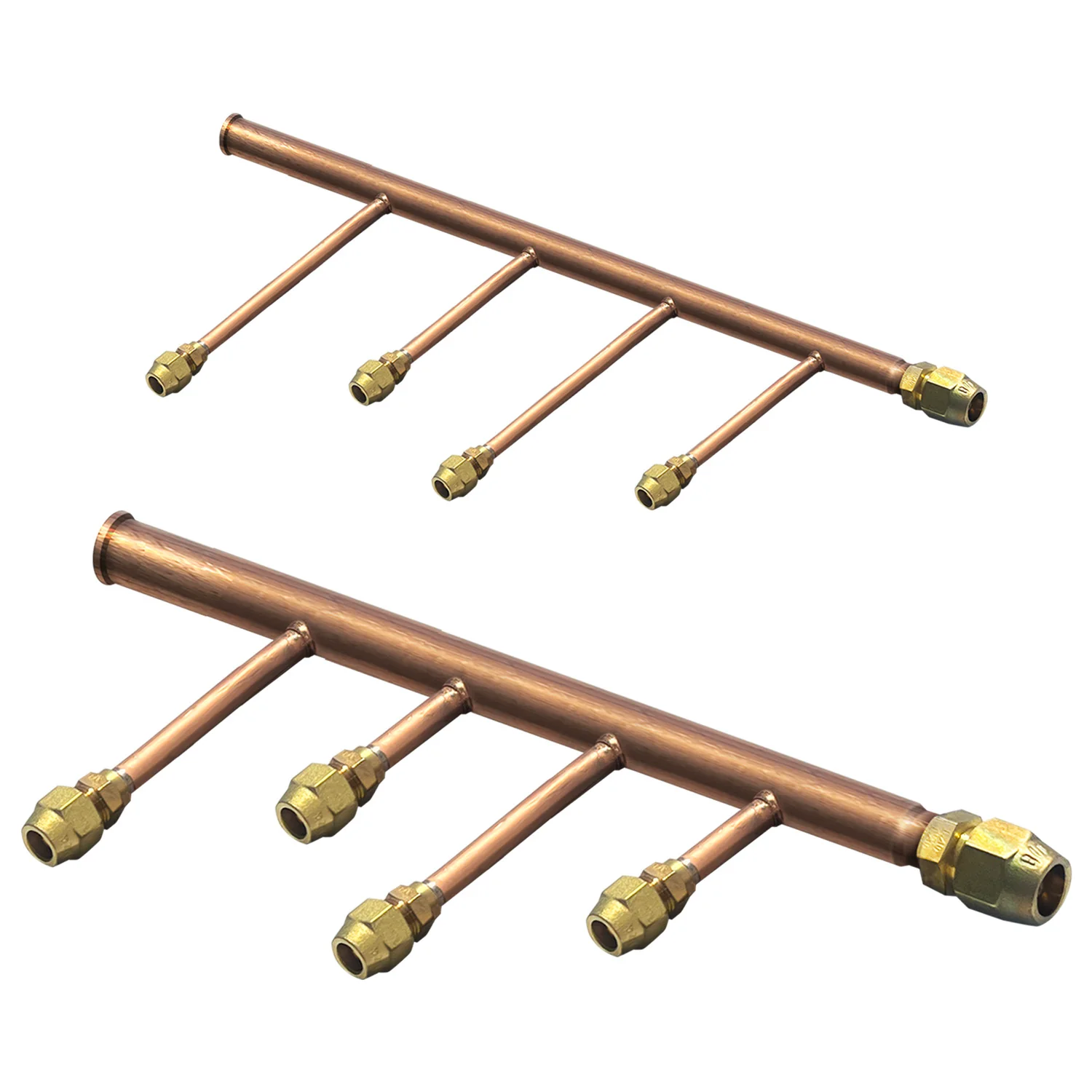

Midea 4-Branch Header
Header of 4 Branches (1:4)
Brand: Midea
Model: DXFQT4-02
Application: Midea VRF Systems
No. of Branches: 4 Indoor Unit Connections
Material: Copper
Features:
  • Designed for Midea VRF air conditioning systems only.
  • Each branch outlet is intended for connection to a single indoor unit.
  • Supplied with pipe adaptors to accommodate different pipe diameters.
  • Supplied with insulation materials to help reduce heat loss and condensation.
  • Manufactured from durable copper for reliable performance and long service life.
  • Includes separate gas-side and liquid-side branch headers for proper flow management.

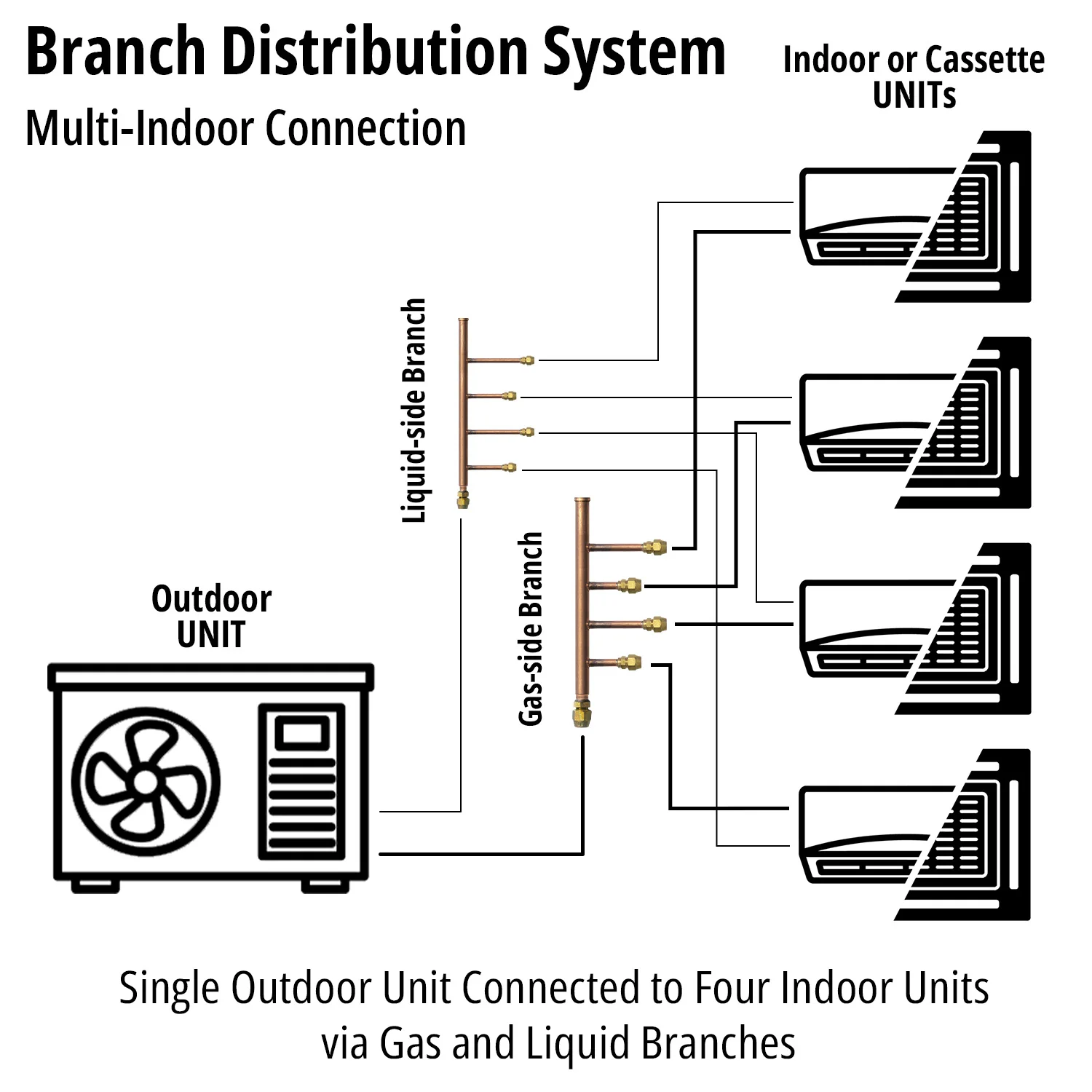

  • Distributes flow from a single main line (4-branch header) to four indoor unit connections.

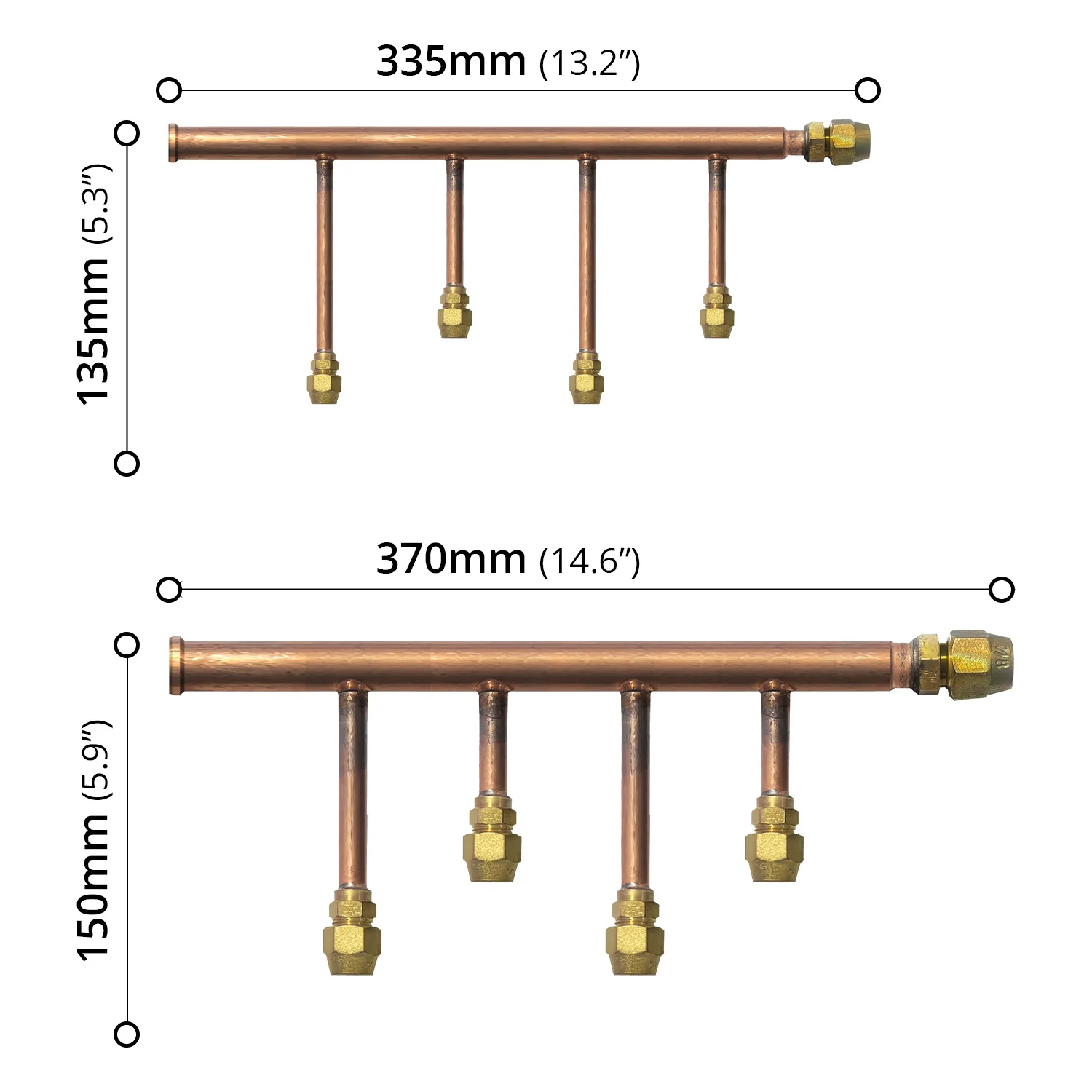

Dimensions & Weight:
Product Dimension (Liquid Side): 335 x 135mm (13.2” x 5.3”)
Product Dimension (Gas Side): 370 x 150mm (14.6” x 5.9”)
Packing Dimension (W x D x H): 465 x 255 x 115mm (18.3” x 10” x 4.5”)
Net Weight: 1.0kg
Gross Weight: 2.4kg

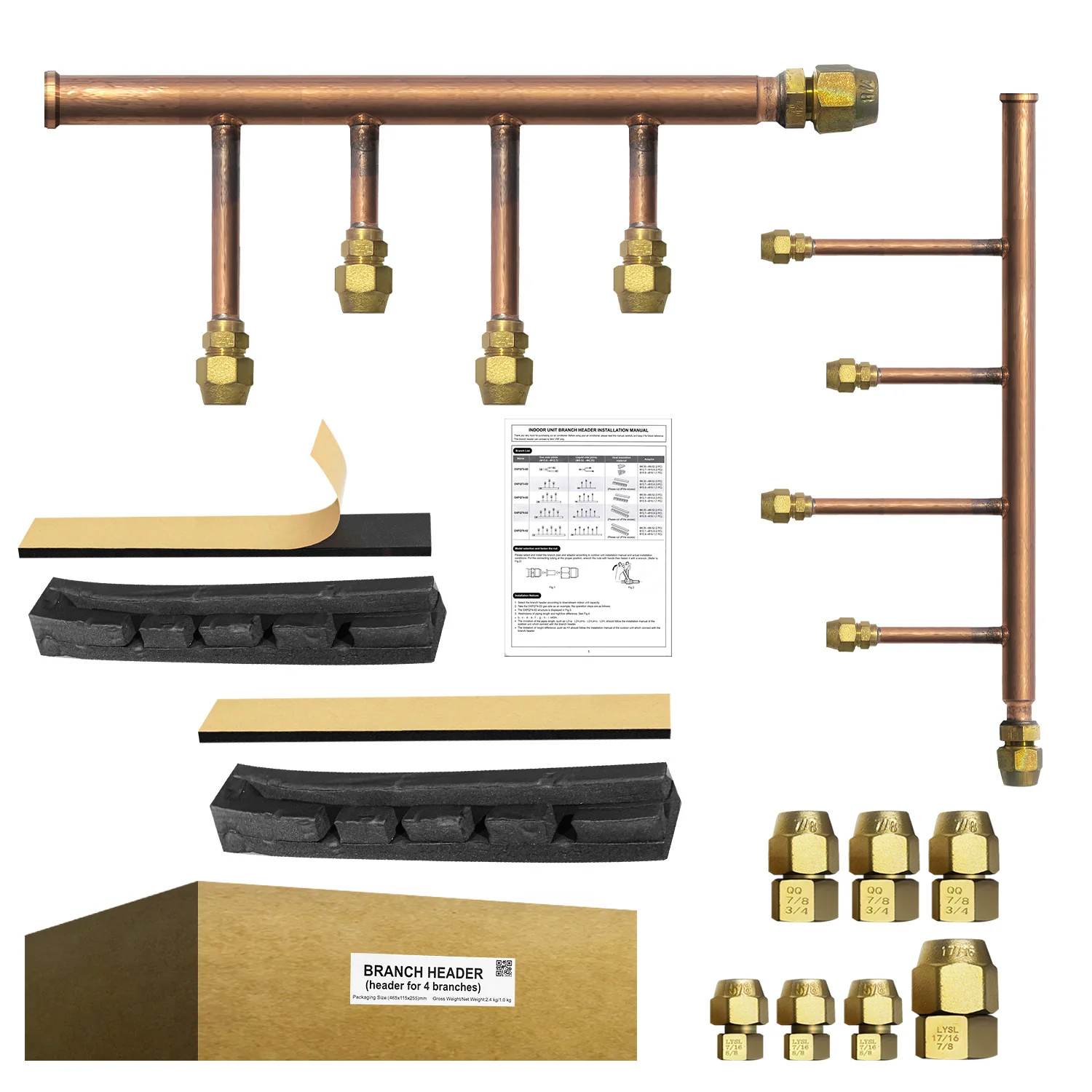

Packing Contents:
4-Branch Header (Gas side) x1
4-Branch Header (Liquid side) x1
Heat Insulation Material x2
Pipe Adapters Ø6.35 → Ø9.52 x3
Pipe Adapters Ø12.7 → Ø15.9 x3
Pipe Adapters Ø15.9 → Ø19.1 x1
Installation Manual x1
$67.77

Original: $193.62

-65%
Branch Header (1:4)—

$193.62

$67.77

Product Information

Shipping & Returns

Description

HEADER FOR 4 BRANCHES
Model no: DXFQT4-02
Brand: MIDEA
ALU: 15111700001942

Midea 4-Branch Header
Header of 4 Branches (1:4)
Brand: Midea
Model: DXFQT4-02
Application: Midea VRF Systems
No. of Branches: 4 Indoor Unit Connections
Material: Copper
Features:
  • Designed for Midea VRF air conditioning systems only.
  • Each branch outlet is intended for connection to a single indoor unit.
  • Supplied with pipe adaptors to accommodate different pipe diameters.
  • Supplied with insulation materials to help reduce heat loss and condensation.
  • Manufactured from durable copper for reliable performance and long service life.
  • Includes separate gas-side and liquid-side branch headers for proper flow management.
  • Distributes flow from a single main line (4-branch header) to four indoor unit connections.
Dimensions & Weight:
Product Dimension (Liquid Side): 335 x 135mm (13.2” x 5.3”)
Product Dimension (Gas Side): 370 x 150mm (14.6” x 5.9”)
Packing Dimension (W x D x H): 465 x 255 x 115mm (18.3” x 10” x 4.5”)
Net Weight: 1.0kg
Gross Weight: 2.4kg
Packing Contents:
4-Branch Header (Gas side) x1
4-Branch Header (Liquid side) x1
Heat Insulation Material x2
Pipe Adapters Ø6.35 → Ø9.52 x3
Pipe Adapters Ø12.7 → Ø15.9 x3
Pipe Adapters Ø15.9 → Ø19.1 x1
Installation Manual x1
