Branch Header (1:5)

HEADER FOR 5 BRANCHES
Model no: DXFQT5-02
Brand: MIDEA
ALU: 15111700001934

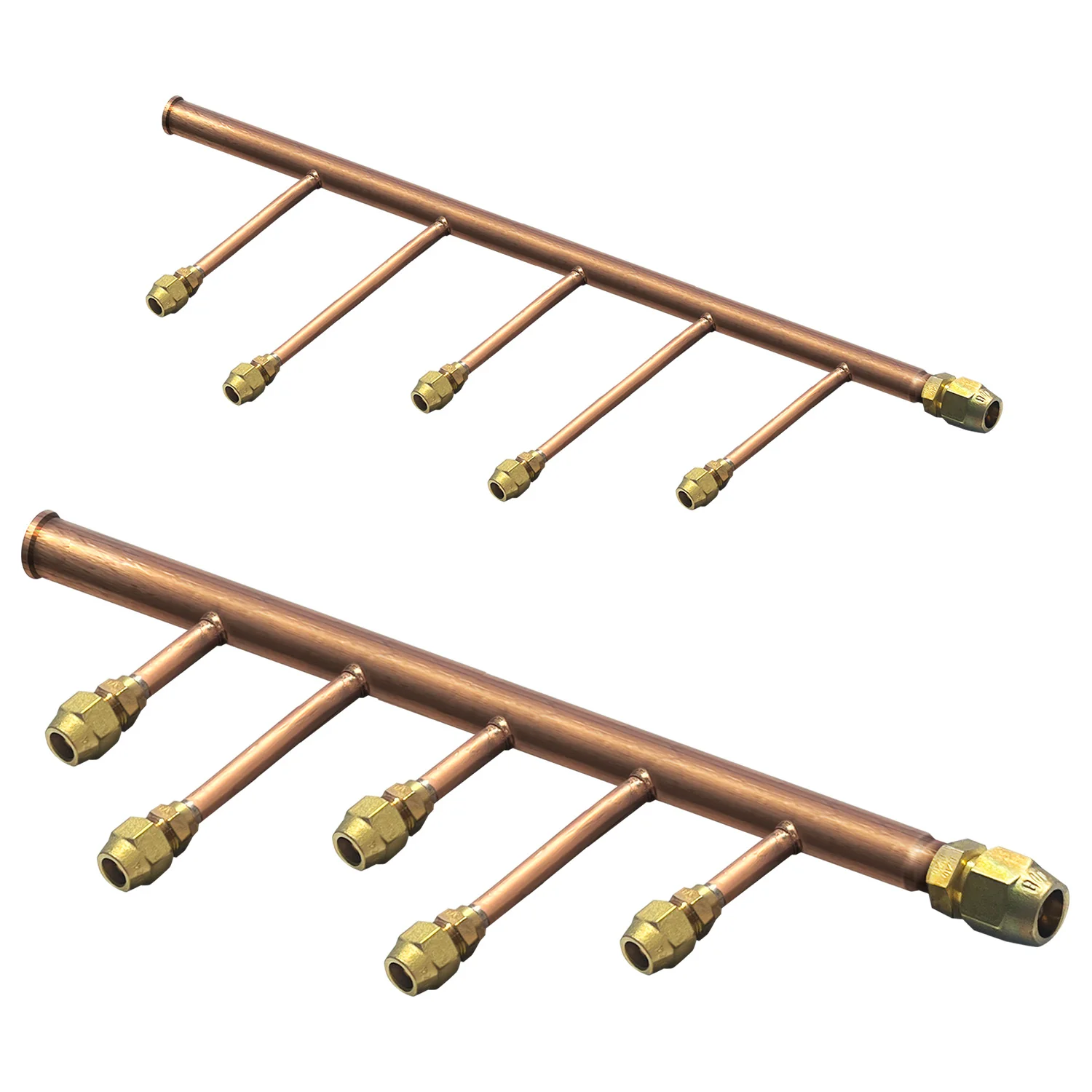

Midea 5-Branch Header
Header of 5 Branches (1:5)
Brand: Midea
Model: DXFQT5-02
Application: Midea VRF Systems
No. of Branches: 5 Indoor Unit Connections
Material: Copper
Features:
  • Designed for Midea VRF air conditioning systems only.
  • Each branch outlet is intended for connection to a single indoor unit.
  • Supplied with pipe adaptors to accommodate different pipe diameters.
  • Supplied with insulation materials to help reduce heat loss and condensation.
  • Manufactured from durable copper for reliable performance and long service life.
  • Includes separate gas-side and liquid-side branch headers for proper flow management.

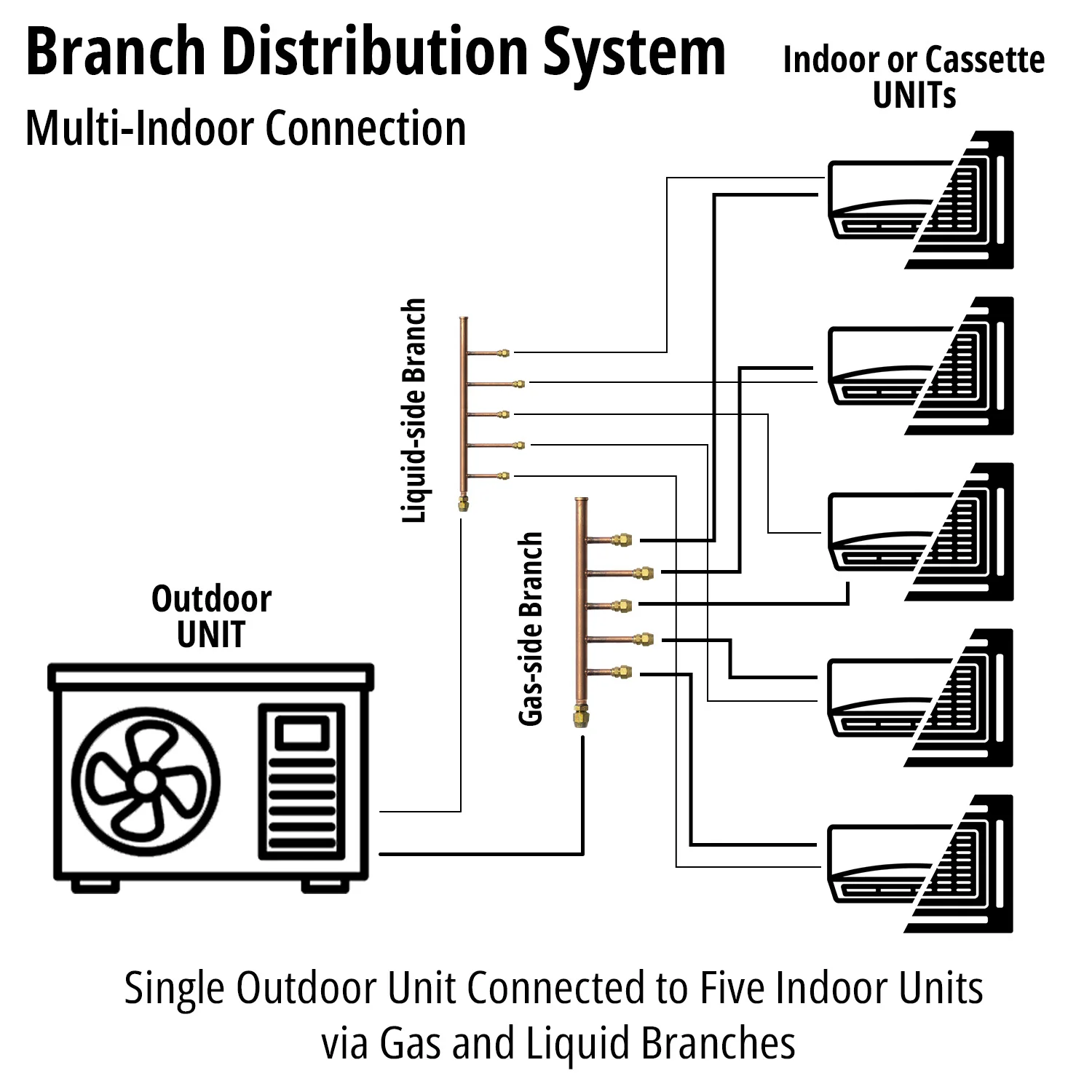

  • Distributes flow from a single main line (5-branch header) to five indoor unit connections.
Dimensions & Weight:

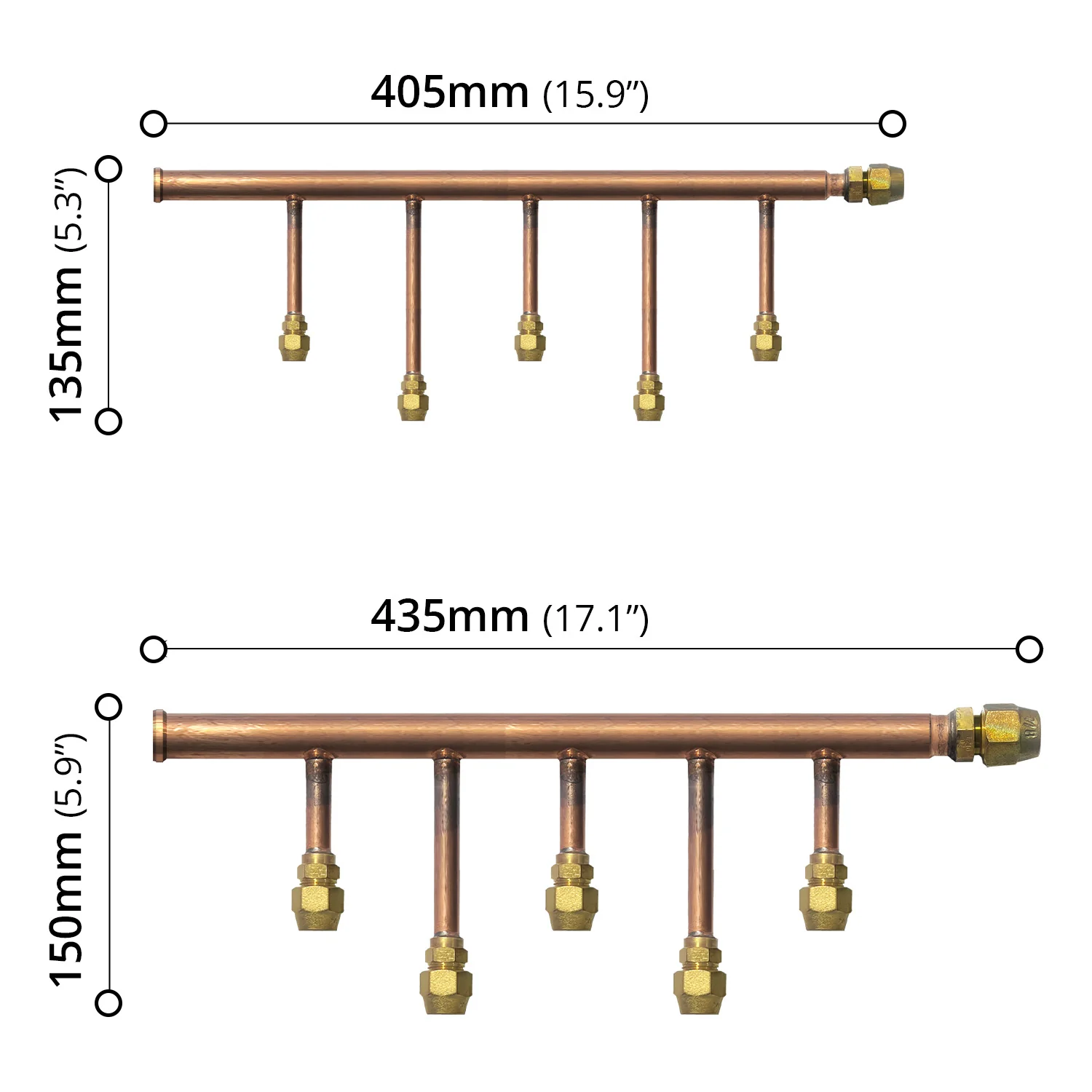

Product Dimension (Liquid Side): 405 x 135mm (15.9” x 5.3”)
Product Dimension (Gas Side): 435 x 150mm (17.1” x 5.9”)
Packing Dimension (W x D x H): 540 x 150 x 260mm (21.3” x 5.9” x 10.2”)
Net Weight: 1.2kg
Gross Weight: 2.9kg
Packing Contents:
5-Branch Header (Gas side) x1
5-Branch Header (Liquid side) x1
Heat Insulation Material x2

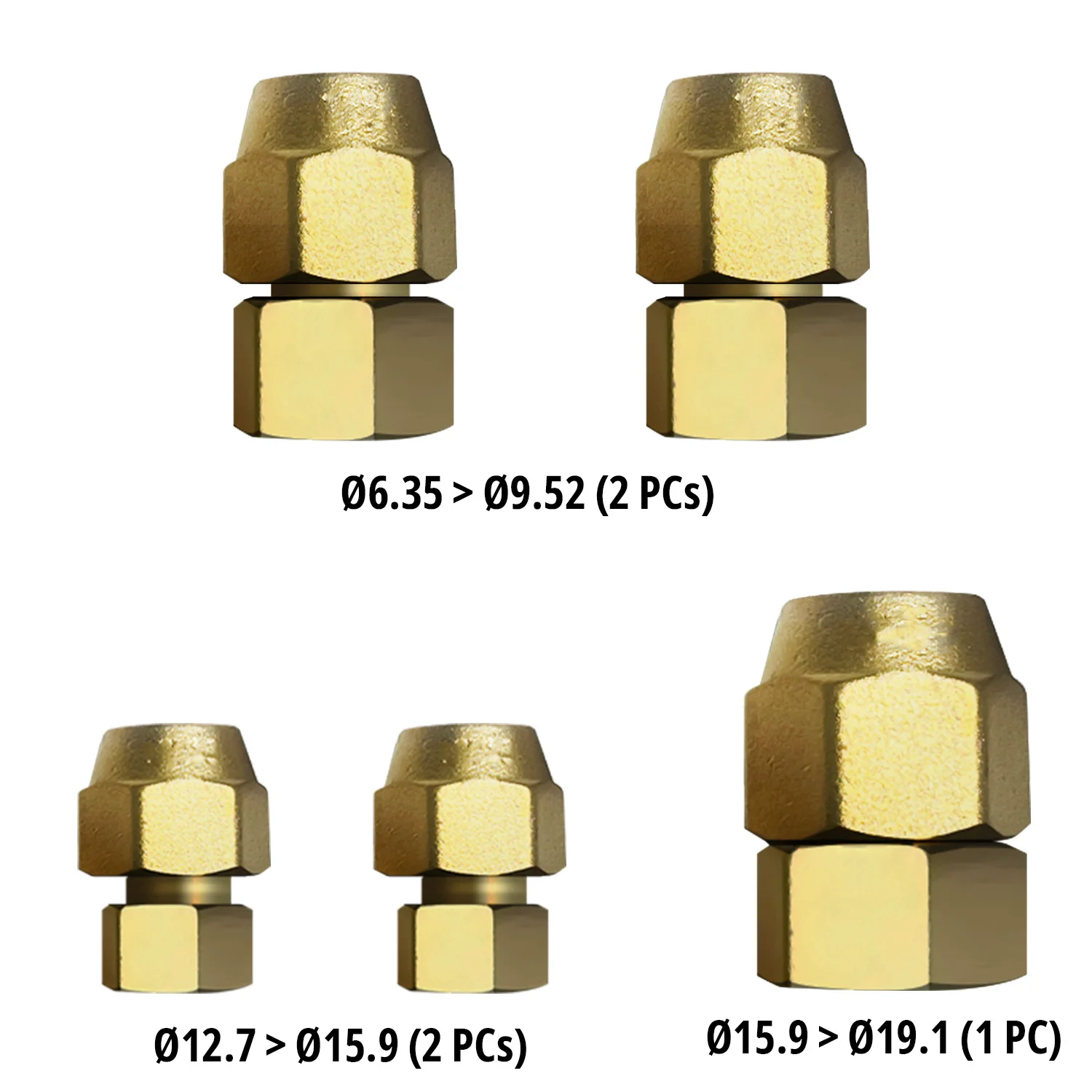

Pipe Adapters Ø6.35 → Ø9.52 x2
Pipe Adapters Ø12.7 → Ø15.9 x2
Pipe Adapters Ø15.9 → Ø19.1 x1
Installation Manual x1
$56.43

Original: $161.24

-65%
Branch Header (1:5)—

$161.24

$56.43
