LED Power Adapter

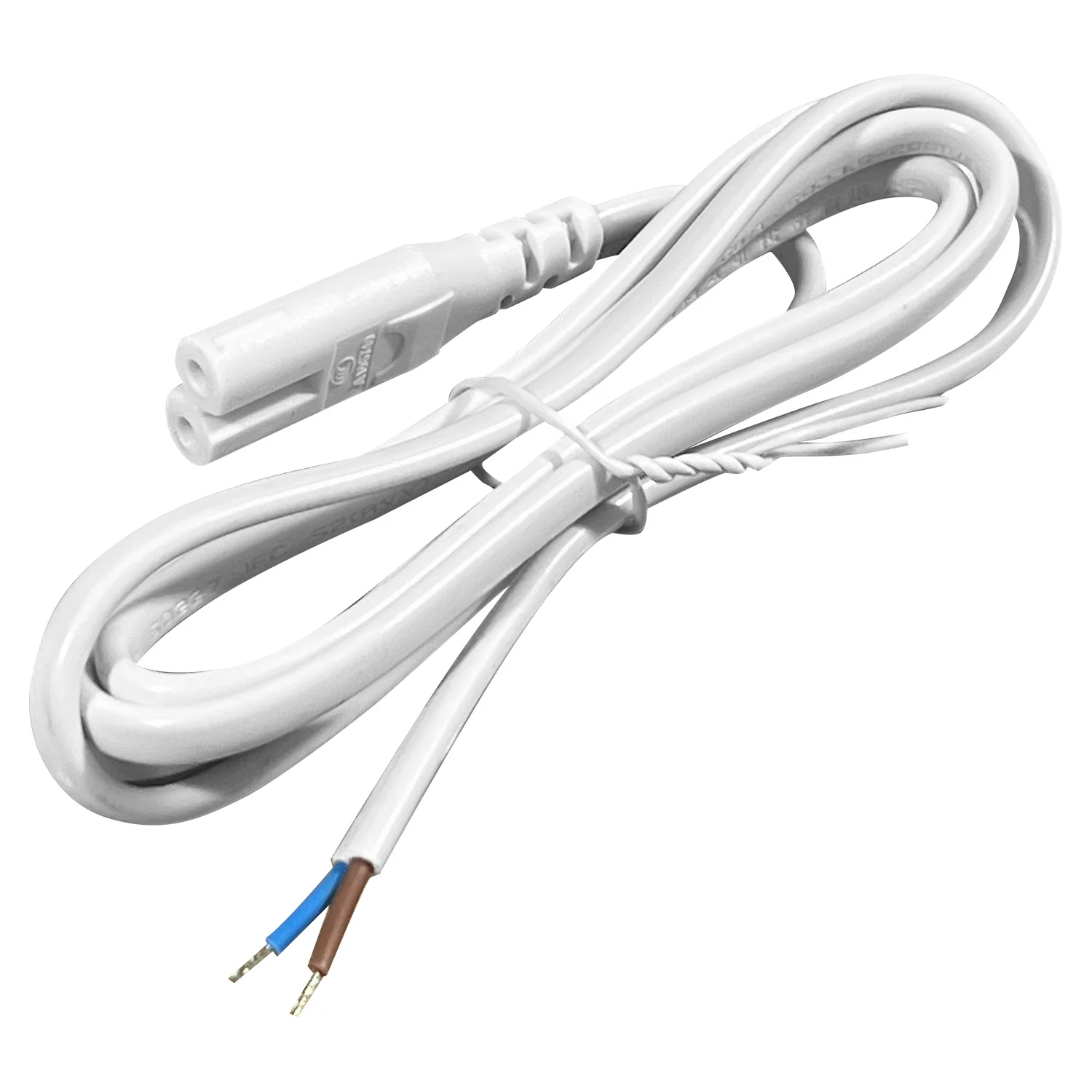

Note: This driver does not come with a plug; it has bare wires.

Zbom – Power Adapter

60W Drive Power Supply

Brand: Zbom

Model: 10804062

Color: White

Rated Power (max.): 60W

Input: AC 100-240V, 50/60, 1.8A

Output: 12V DC, Maximum Current 5A

Protection Level: IP20

Operating Temperature: Tc: 80°C | Ta: 40°C

Output Capacity: Supports up to 9 LED strips, each with a maximum current of 5A

Material: Plastic

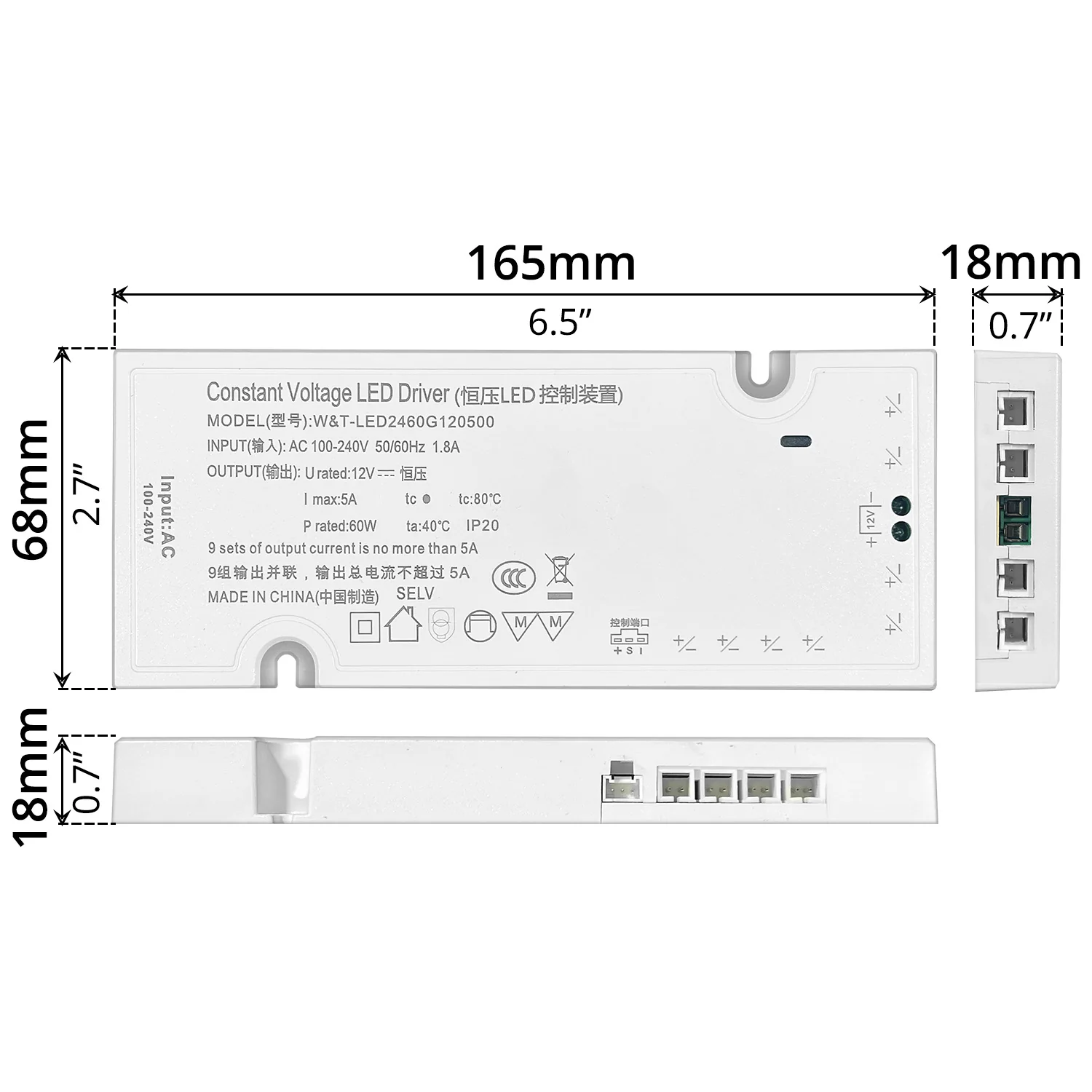

Dimension (W x D x H): 165 x 68 x 18mm (6.5” x 2.7” x 0.7”)

Features:

• • Durable, lightweight plastic housing.
  • Specifically designed for under-cabinet kitchen LED lighting.
  • Reliable operation with built-in temperature protection (Tc 80°C).
  • Compact, low-profile design fits easily in tight spaces under cabinets.
  • Provides stable 12V constant voltage to ensure consistent brightness.
  • Supports multiple LED strips (up to 9 sets), each with a maximum current of 5A.
  • Maximum load capacity: 60W, but for safety and longevity, it’s recommended to keep the total LED load at no more than 80% of the driver’s capacity.
