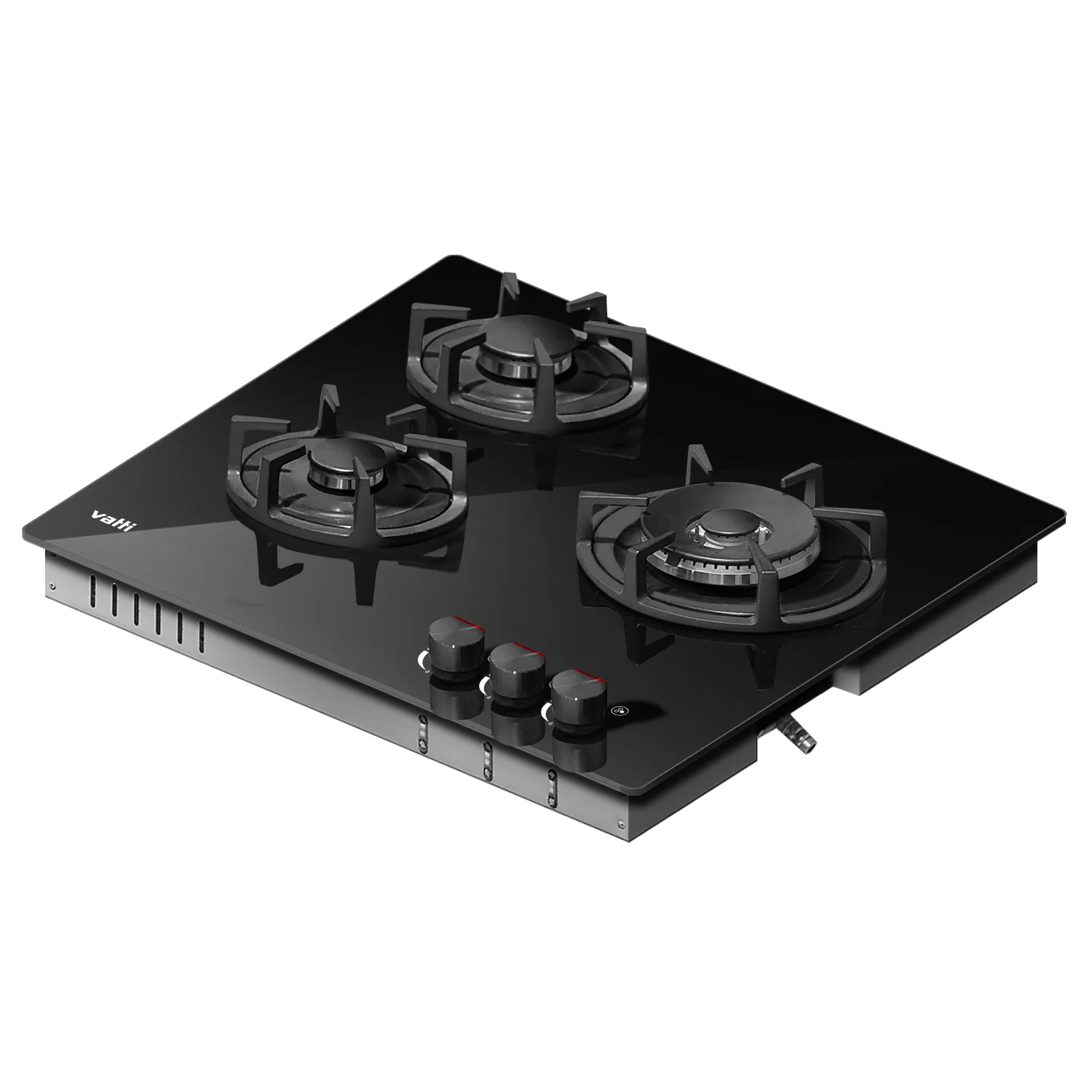

Built-in Gas Hob

Vatti – Built-in Gas Hob

3 Burners

Brand: Vatti

Model: G3608GCP

Type of Gas: LPG

Rated Gas Pressure: 2800Pa

Rated Thermal Flow:

• Burner 1: 1.0kW
• Burner 2: 1.75kW
• Burner 3: 4.0kW

Gas Connection: G1/2 Thread

Type of Ignition: Electric Cord

Cooktop Material: Tempered Glass

Warranty: 12 Months Warranty

Features:

• • Gas Connection: G1/2 Thread for secure attachment to gas supply.
  • LPG Compatibility: Specifically designed for use with LPG gas systems.
  • Automatic Ignition: Features an electric cord ignition system for easy start-up.
  • Tempered Glass Cooktop: Durable and easy-to-clean surface that enhances the overall look and performance.
  • Each burner is equipped with safety thermocouples (FSD), a key feature that enhances safety by detecting the presence of flame.

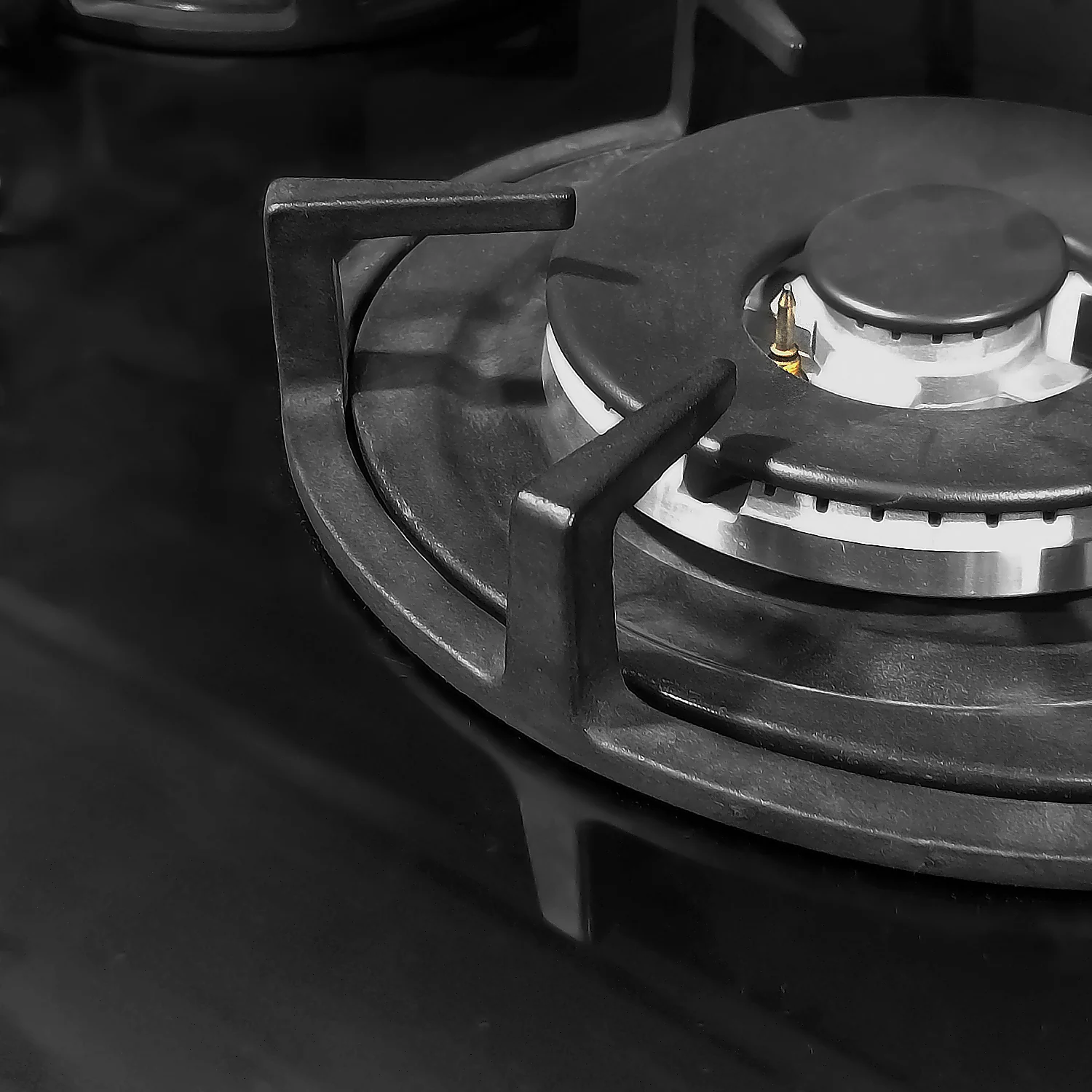

  • Sabaf Burners: Equipped with Sabaf burners, an Italian brand renowned for its high quality, long-lasting performance, and efficient heat output.

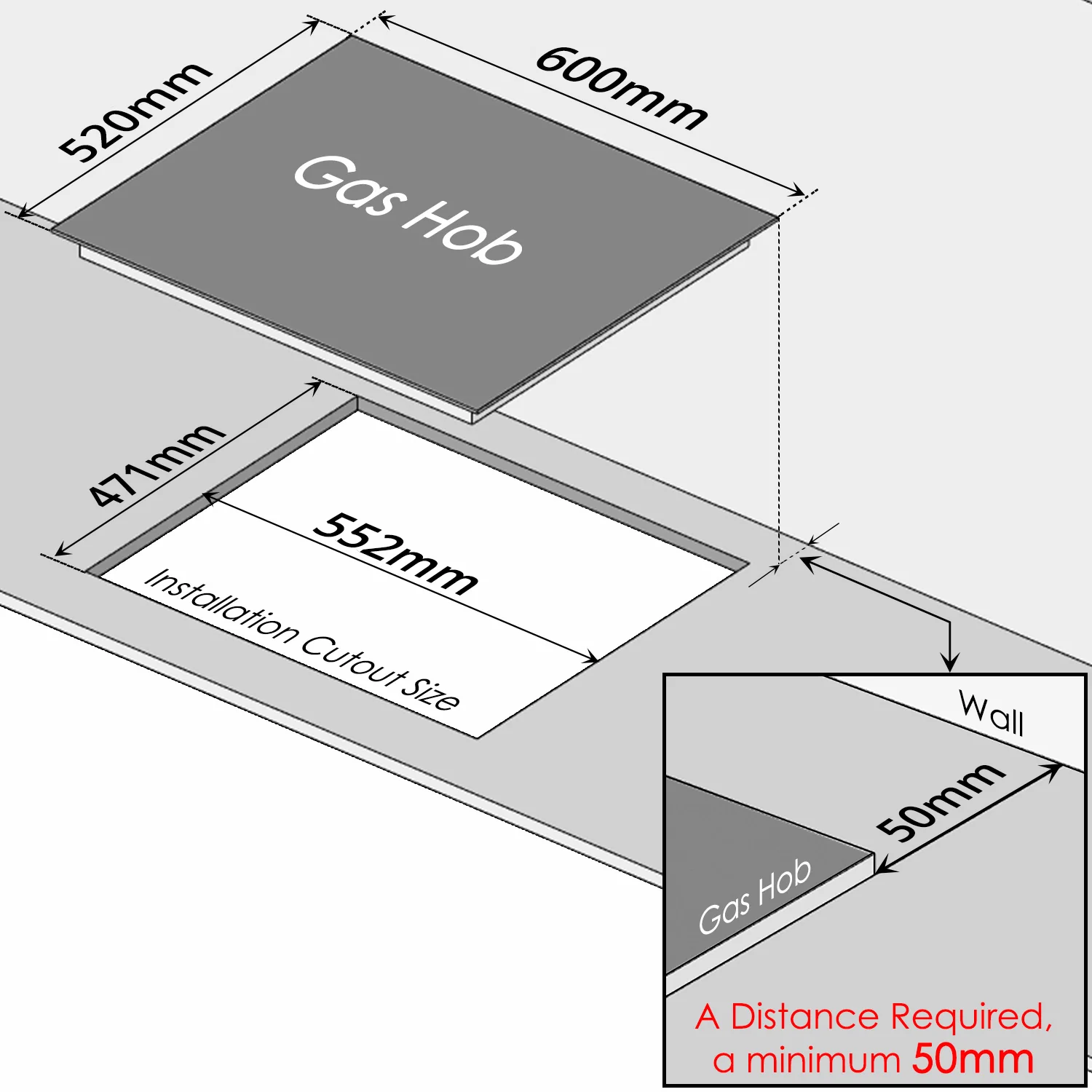

Installation Cut-out Size: 552 x 471mm (21.7” x 18.5”)



Dimensions & Weights:

Width x Depth x Height

Product Dimension:

• Millimeter (mm): 600 x 520 x 55mm (height up to the surface, excluding knobs & cast supports)
• Inch (”): 23.6” x 20.5” x 2.2”
• Feet (’) Inch (”): 2’ x 1’8” x 0’2”

Packing Dimension: 685 x 575 x 180mm (27” x 22.6” x 7.1”)

Net Weight: 9.5kg

Gross Weight: 11.8kg

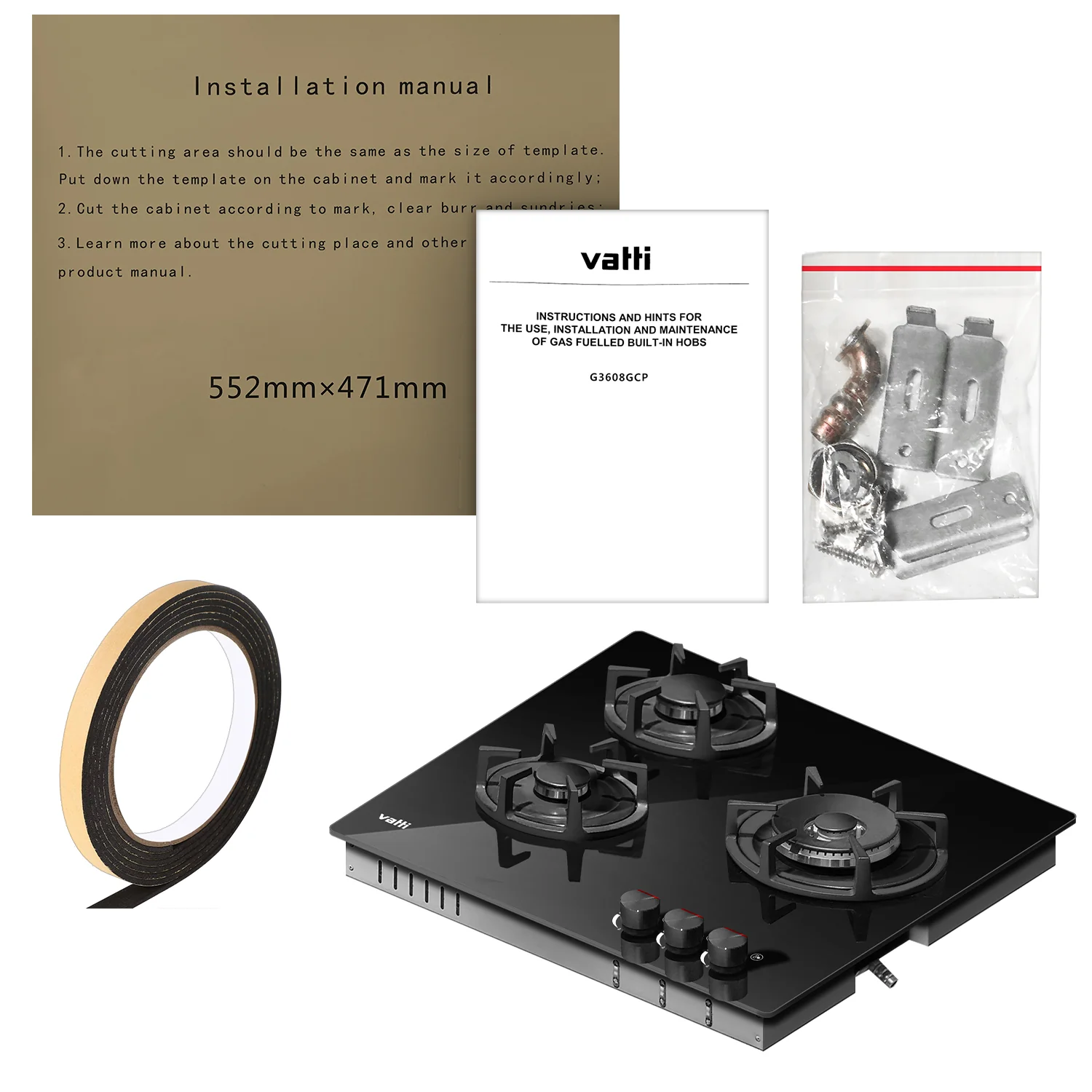

Packing Contents:

Built-in Gas Hob – x1

Gas Universal Joint Hose – x1

Bracket – x4

Screws – x4

Sponge Strip – x1

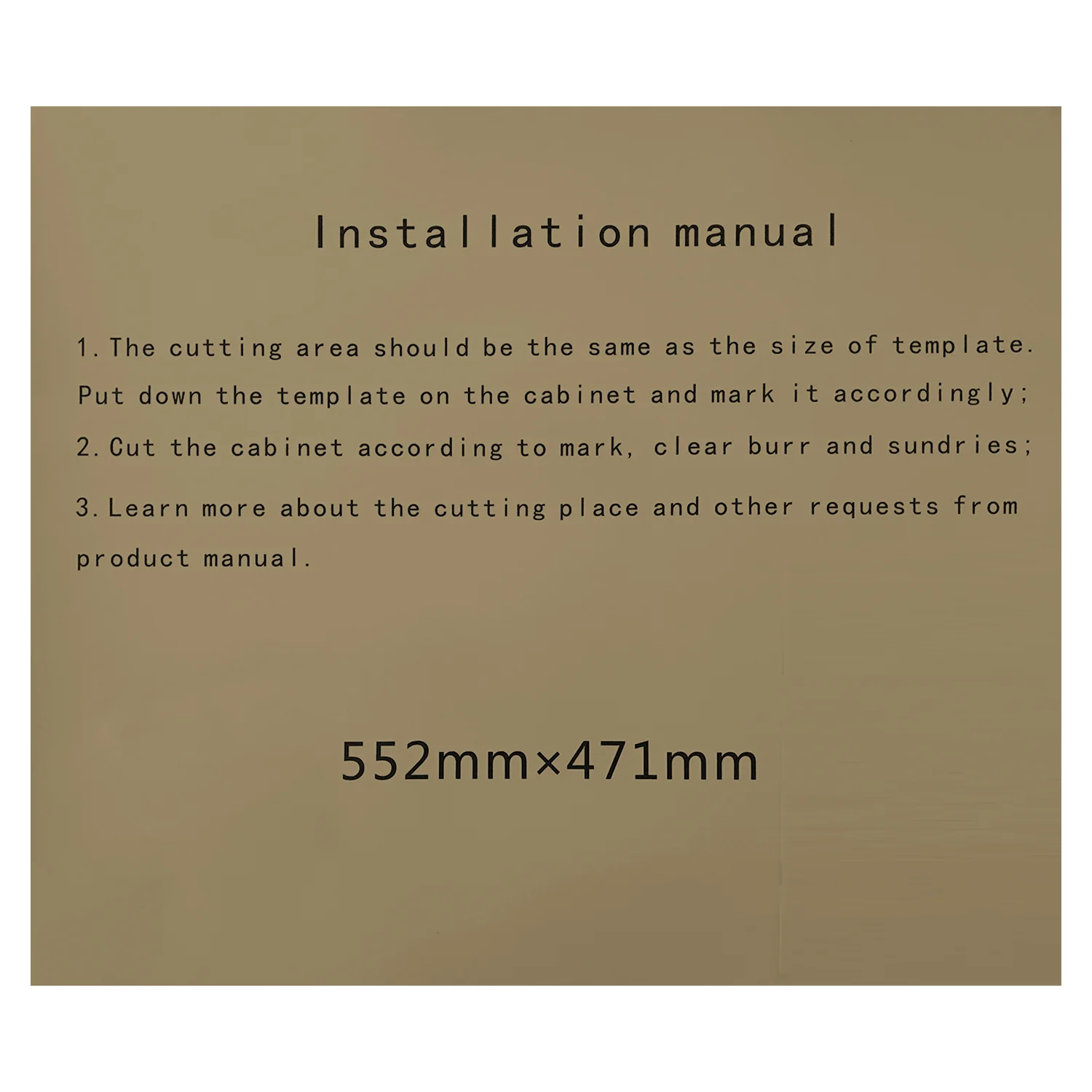

Installation Cut-out Paper – x1

User Manual – x1
