Built-in Gas Hob

Vatti – Built-in Gas Hob

4 Burners

Brand: Vatti

Model: GU01460s

Color: Silver

Type of Gas: LPG

Rated Gas Pressure: 2800Pa

Rated Thermal Flow:

• Rapid burner: 3.0kW
• Semi-rapid burner 1: 1.75kW
• Semi-rapid burner 2: 1.75kW
• Auxiliary-rapid burner: 1.0kW

Gas Connection: G1/2 Thread

Type of Ignition: Electricity Cord

Cooktop Material: Stainless Steel

Warranty: 12 Months Warranty

Features:

• • Gas Connection: G1/2 Thread for secure attachment to gas supply.
  • LPG Compatibility: Specifically designed for use with LPG gas systems.
  • Automatic Ignition: Features an electric cord ignition system for easy start-up.
  • Stainless Steel Cooktop: Durable and easy-to-clean surface that enhances the overall look and performance.
  • Each burner is equipped with safety thermocouples (FSD), a key feature that enhances safety by detecting the presence of flame.

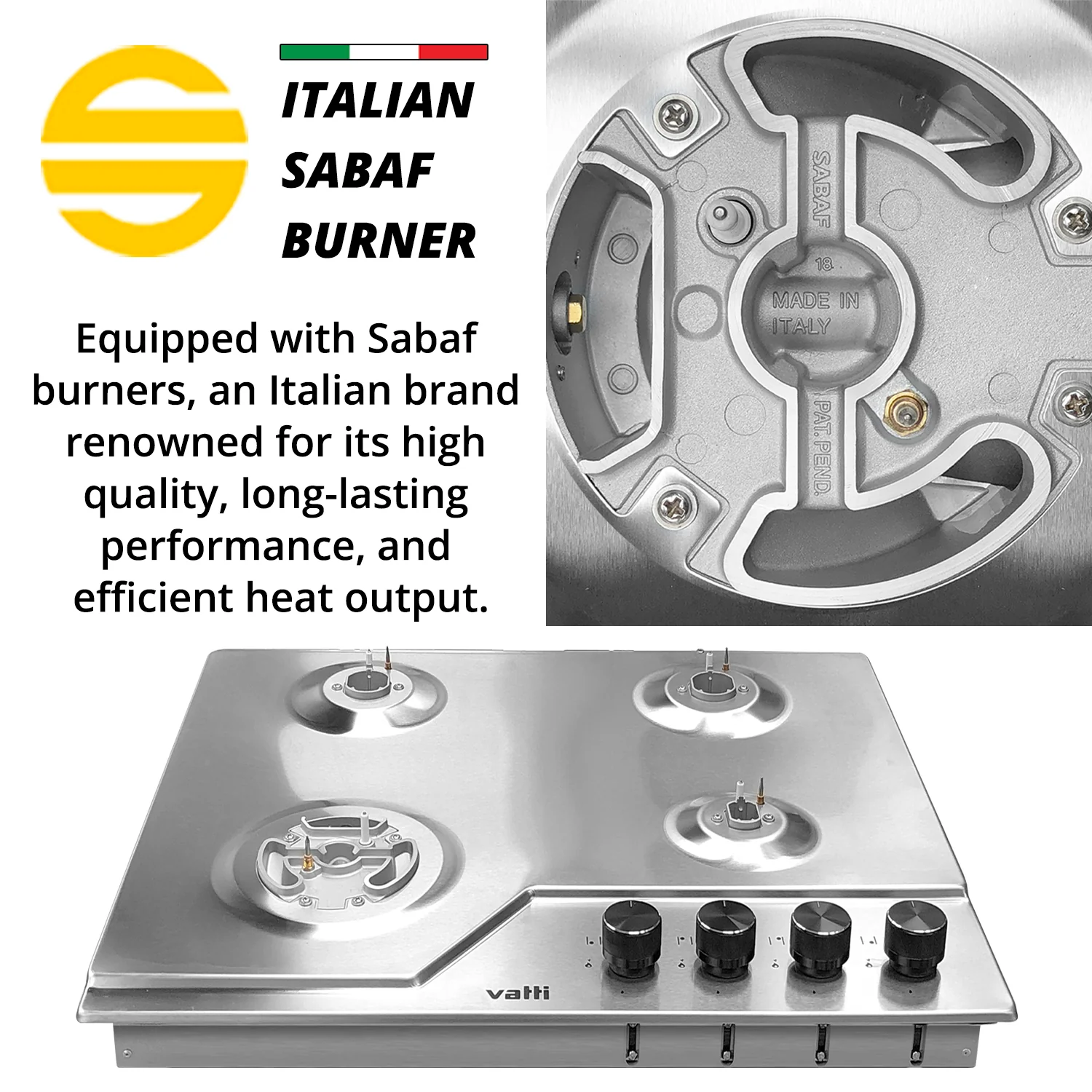

  • Sabaf Burners: Equipped with Sabaf burners, an Italian brand renowned for its high quality, long-lasting performance, and efficient heat output.



Installation Cut-out Size: 553 x 473mm (21.8” x 18.6”)



Dimensions & Weights:

Width x Depth x Height

Product Dimension:

• Millimeter (mm): 580 x 500 x 55mm (height up to the surface, excluding knobs & cast supports)
• Inch (”): 22.8” x 19.7” x 2.2”
• Feet (’) Inch (”): 1’11” x 1’8” x 0’2”

Packing Dimension: 670 x 580 x 170mm (26.4” x 22.8” x 6.7”)

Net Weight: 9.2kg

Gross Weight: 11.2kg

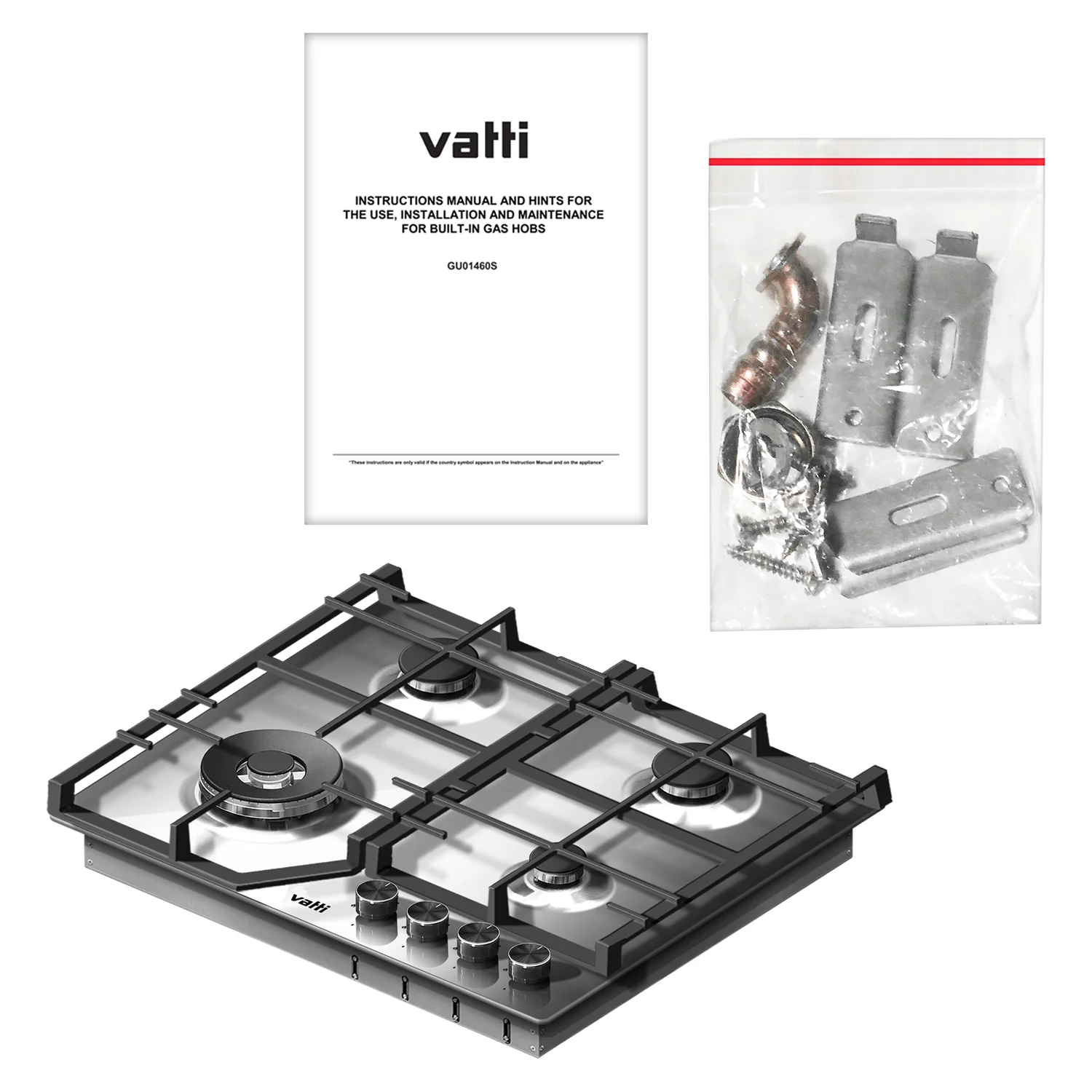

Packing Contents:

Built-in Gas Hob – x1

Gas Universal Joint Hose – x1

Bracket – x4

Screws – x4

User Manual – x1
