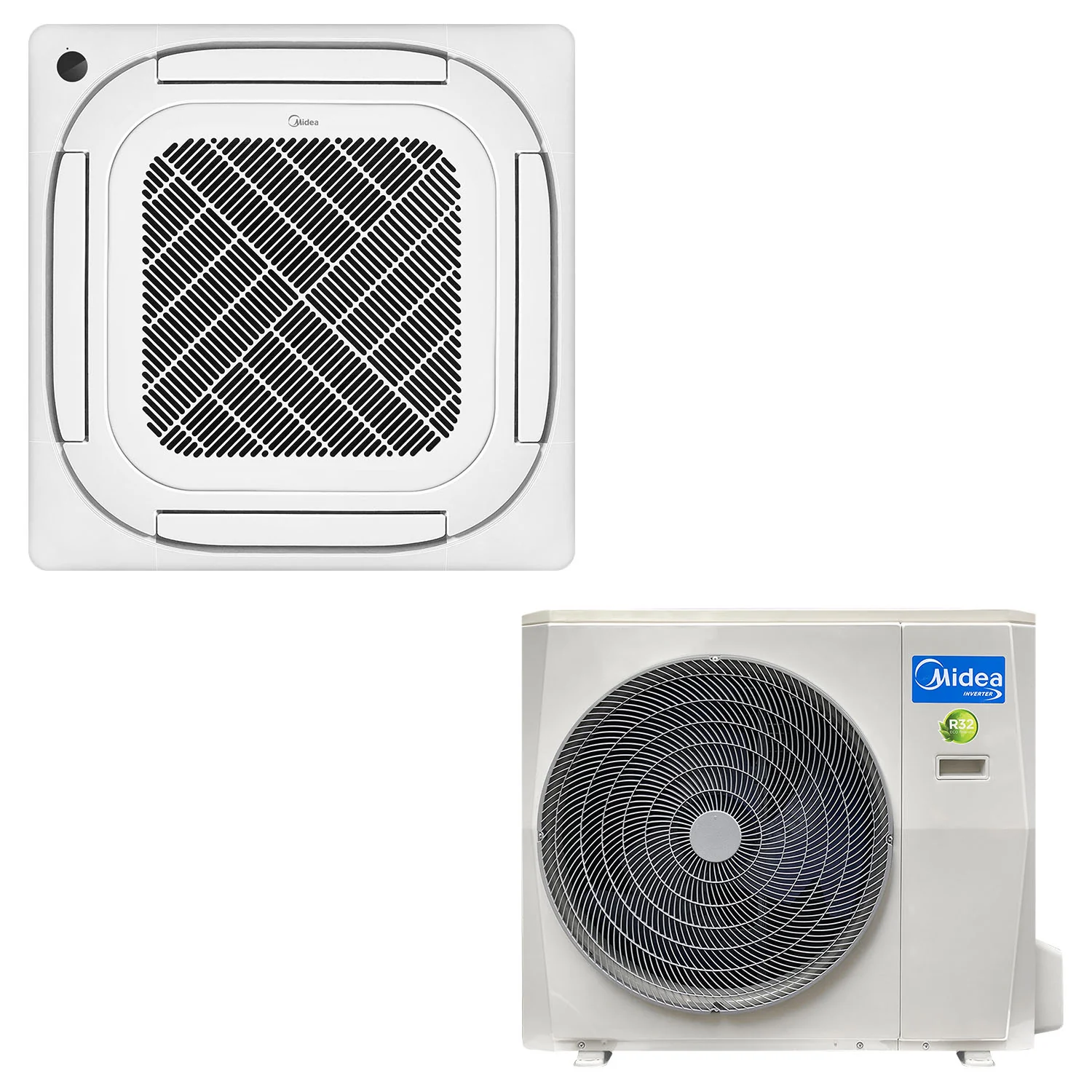

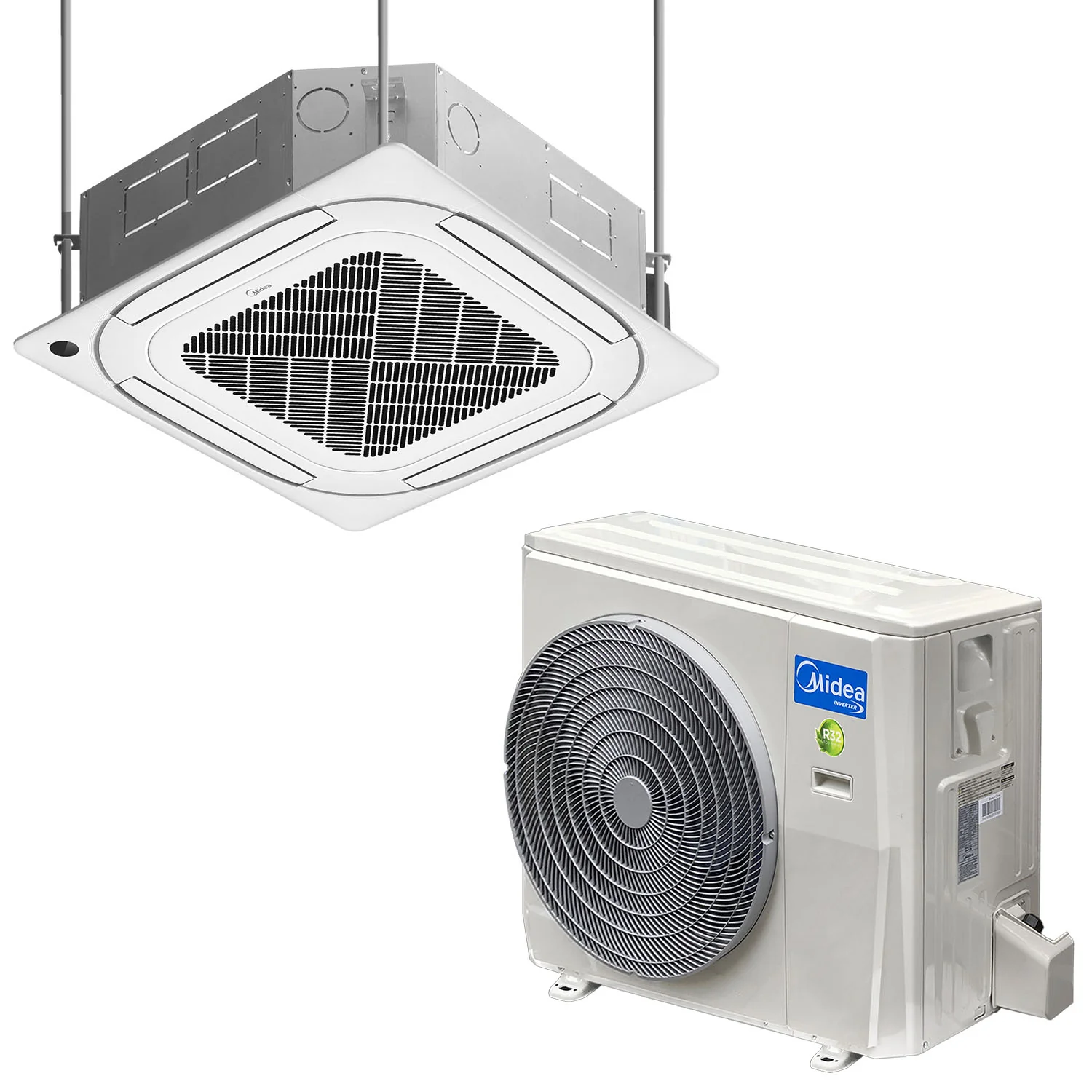

24000 BTU 4-Way Cassette AC (Inverter)
INVERTER FOUR-WAY
Model no: MCD1-24CRDN8
Brand: MIDEA
ALU: 23793
Size: 24000BTU
| Midea – Cassette AC (24000BTU) | |
| Inverter Four-Way | |
| Brand: | Midea |
| Model: | MCD1-24CRDN8 |
| Product Type: | Inverter Four-Way Cassette |
| Capacity: | 24000 BTU |
| Warranty: | 1 Year Warranty plus 5 Years Compressor Warranty |
| Indoor Unit: | |
| Type: | Cooling Only |
| Control Type: | Remote |
| Power Supply (V, Ph, Hz): | 220-240V, 1-Phase, 50Hz |
| Cooling Performance: | Cooling Capacity (Btu/h): 24000Btu/h Input (W): 2400W Rated Current (A): 11.5 A EER (W/W): 2.93 |
| Rated Power Input: | 3000 W |
| Rated Current: | 17 A |
| Capacitor: | 3 uF |
| Indoor Fan Motor Speed (High/Middle/Low): | 620/480/410 r/min |
| Indoor Air Flow (High/Middle/Low): | 1160/870/720 m³/h |
| Indoor Noise Level (High/Middle/Low): | 46/39/35 dB(A) |
| Indoor Coil: | Number of rows: 2 Tube pitch (a) x row pitch (b): 21 x 13.37mm Fin spacing: 1.3mm Fin type (code): Golden Hydrophilic aluminum Tube outside dia. and type: Φ7, Inner groove tube Coil (length x height x width): 2135 x 168 x 26.74mm Number of circuits: 4 |
| Drainage Water Pipe Diameter: | OD Ø32 mm |
| Room Temperature Indoor (Cooling): | 16 ~ 32 °C |

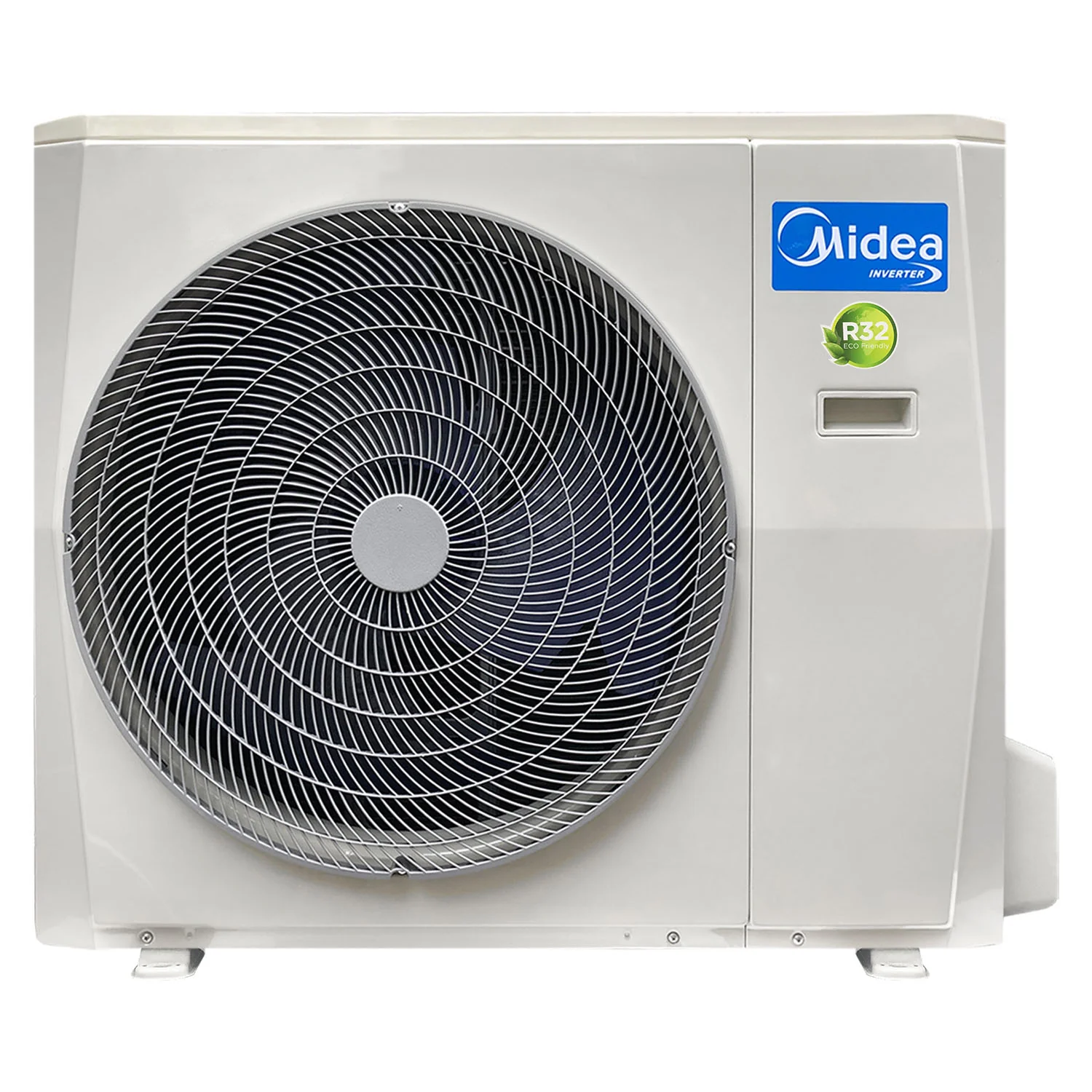

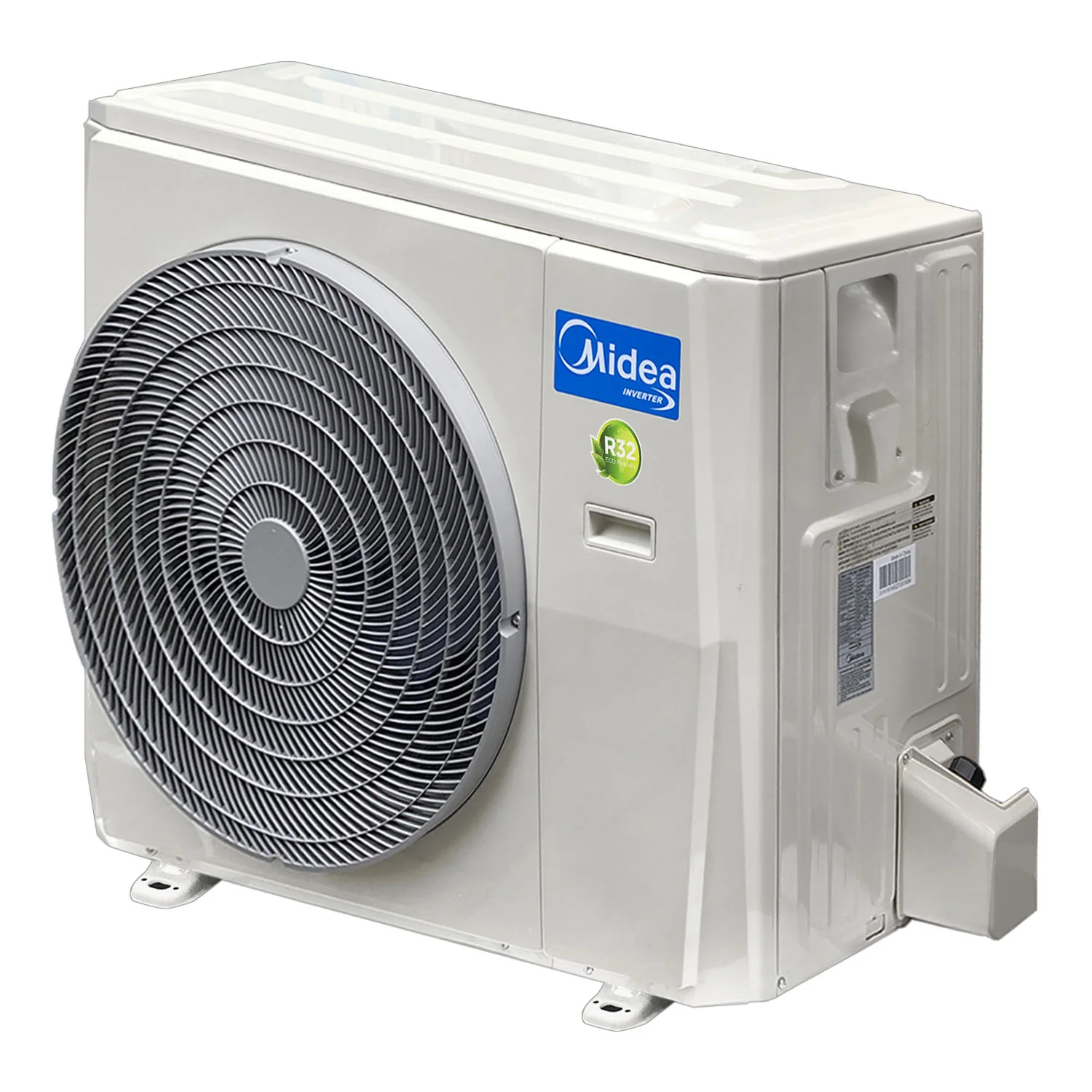

| Outdoor Unit: | |
| Power Supply (V, Ph, Hz): | 220-240V, 1-Phase, 50Hz |
| Compressor: | Type: Rotary Capacity (W): 4385W Input (W): 1140W Rated current (RLA) (A): 7.50A |
| Fan Quantity: | x1 |
| Outdoor Fan Motor Speed: | 980/600 r/min |
| Outdoor Coil: | Number of rows: 1.6 Tube pitch (a) x row pitch (b): 21 x 13.37 mm Fin spacing: 1.3mm Fin type (code): Golden Hydrophilic aluminum Tube outside dia. and type: Φ7, Inner groove tube Coil (length x height x width): 900 x 609 x 13.37mm + 550 x 609 x 13.37mm Number of circuits: 2 |
| Outdoor Noise Level: | 58 dB(A) |
| Operation Temperature: | 17 ~ 30 °C |
| Room Temperature Outdoor (Cooling): | 0 ~ 50 °C |
| Refrigerant & Piping: | |
| Refrigerant Type: | R32 / 1.3 kg |
| Design Pressure: | 4.3/1.7 MPa |
| Liquid Side / Gas Side: | 6.35 mm (1/4 in) / 12.7 mm (1/2 in) |
| Max. Refrigerant Pipe Length: | 25 m |
| Max. Difference in Level: | 15 m |
| Dimensions & Weight: | |
| Panel: | |
| Product Dimension (W x D x H): | 950 x 950 x 55mm (37.4" x 37.4" x 2.2") |
| Packing Dimension (W x D x H): | 1035 x 1035 x 90mm (40.7" x 40.7" x 3.5") |
| Net Weight: | 6kg |
| Gross Weight: | 9kg |
| Indoor Unit: | |
| Product Dimension (W x D x H): | 830 x 830 x 205mm (32.7" x 32.7" x 8.1") |
| Packing Dimension (W x D x H): | 910 x 910 x 250mm (35.8" x 35.8" x 9.8") |
| Net Weight: | 22.1kg |
| Gross Weight: | 26.4kg |
| Outdoor Unit: | |
| Product Dimension (W x D x H): | 890 x 342 x 673mm (35" x 13.5" x 26.5") |
| Packing Dimension (W x D x H): | 995 x 435 x 750mm (39.2" x 17.1" x 29.5") |
| Net Weight: | 34.6kg |
| Gross Weight: | 37.7kg |

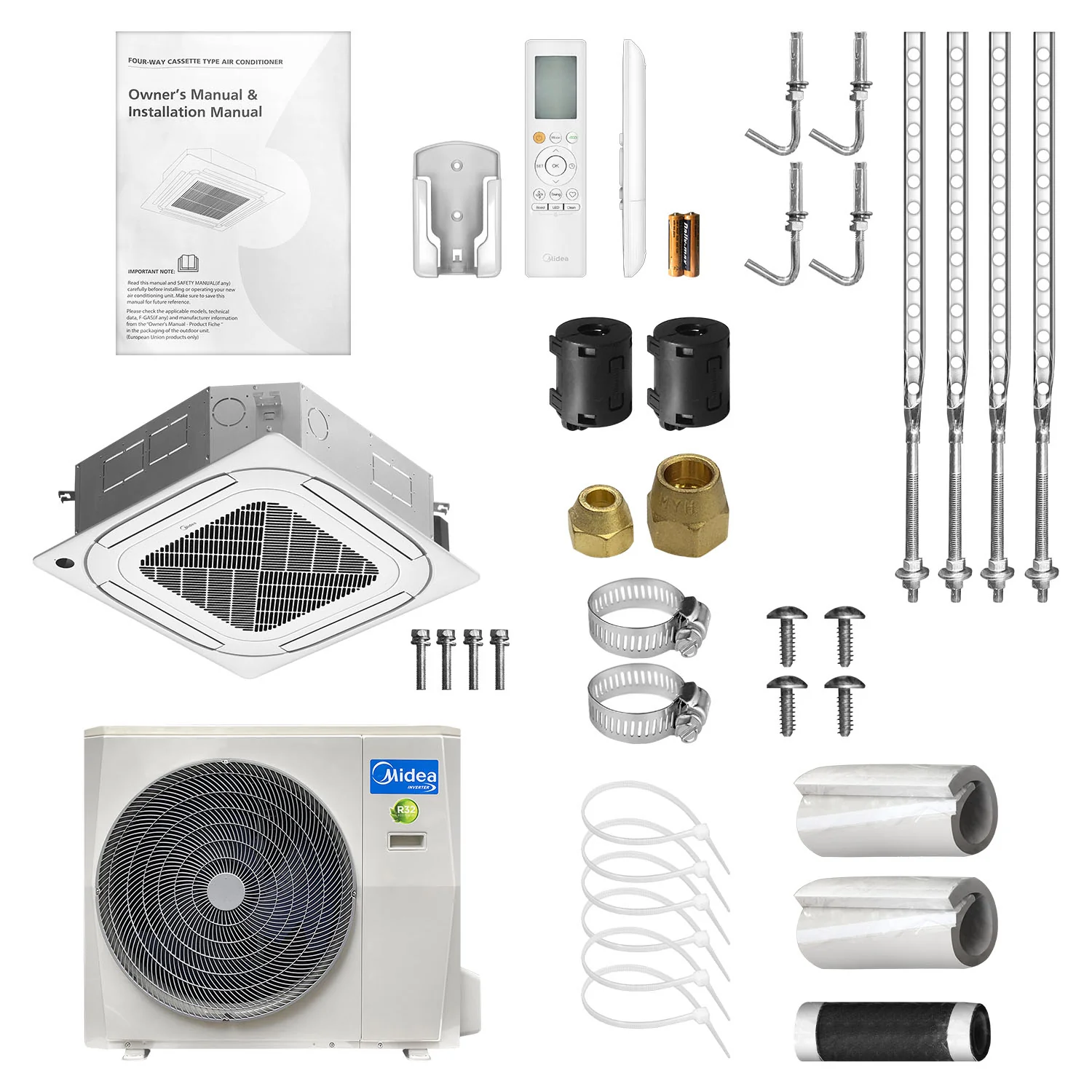

| Packing Contents: | |
| 24k BTU 4-Way Panel – x1 | |
| Screws | x4 |
| 24k BTU Indoor Unit – x1 | |
| Suspension Bolt | x4 |
| Ceiling Hook | x4 |
| Hose Clamp | x2 |
| Screws | x4 |
| Cable Tie | x6 |
| Insulation Sheath | x2 |
| Outlet pipe sheath | x1 |
| Copper Nut | x2 |
| Magnetic Ring Cable Filter | x2 |

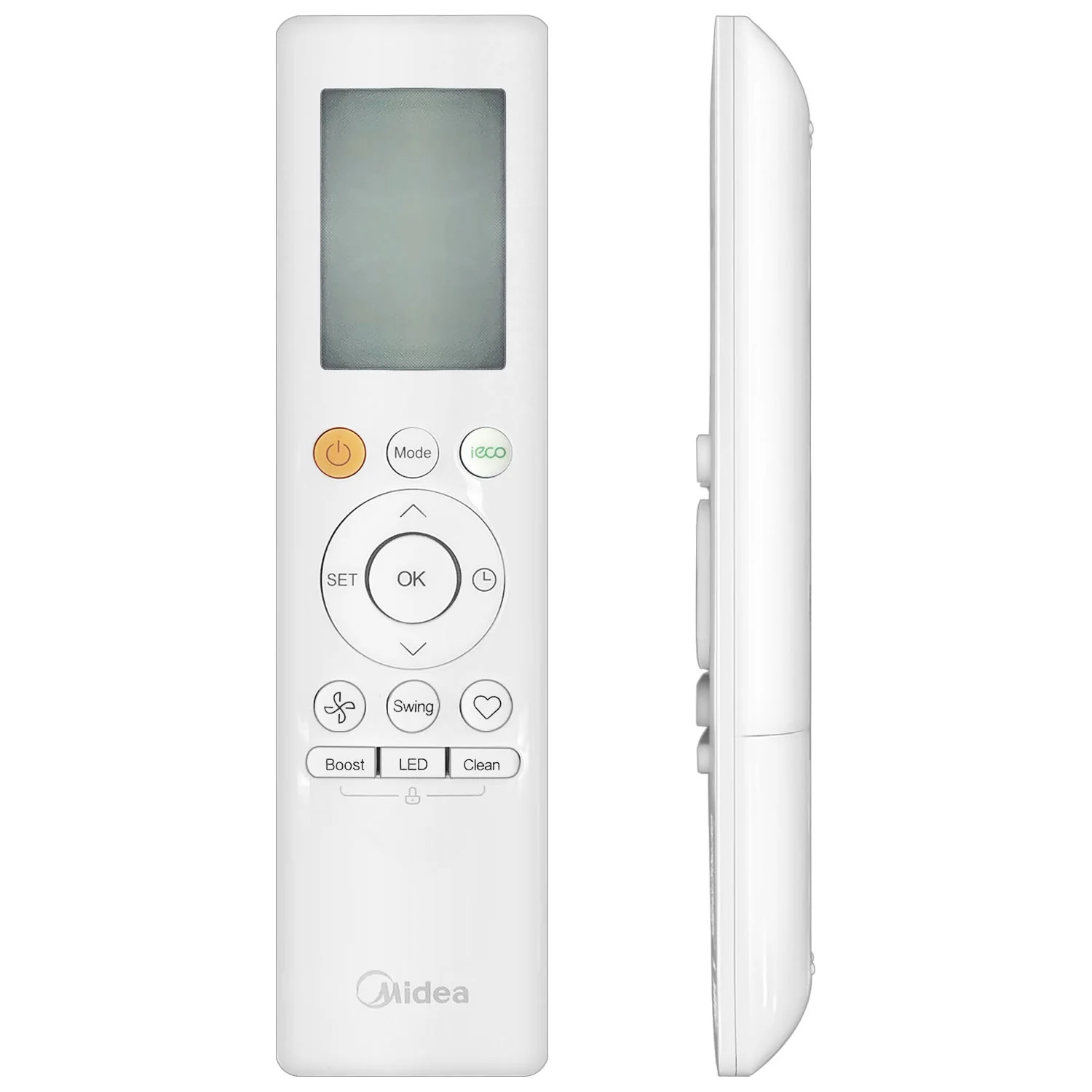

| Remote Control | x1 |
| AAA Battery | x2 |
| Wall Mount Remote Holder | x1 |
| 24k BTU Outdoor Unit – x1 | |
